Home Our Products Eckold Clinchers Eckold MZD 45/35 P Portable Clinching Unit

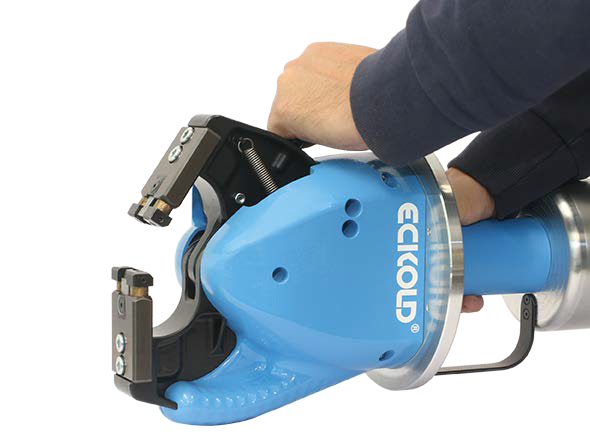

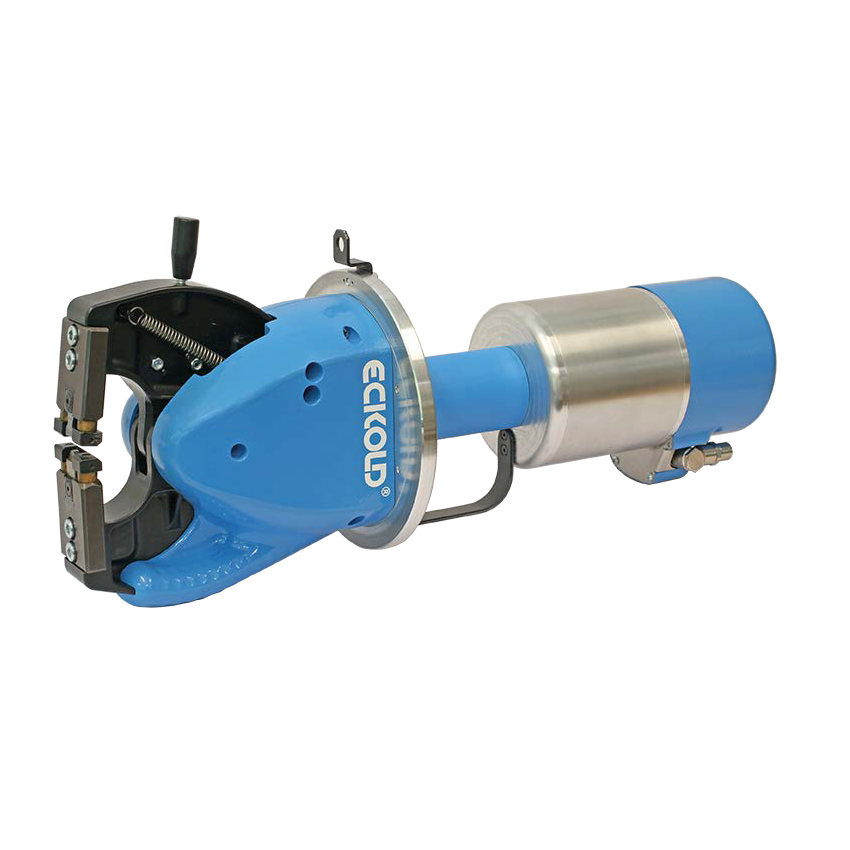

Eckold MZD 45/35 P Portable Clinching Unit

Eckold MZD 45/35 P portable clinching unit is an innovative, proven tool for the joining of sheet metal and profiles. Work pieces are permanently joined by cold forming – doing away with fixtures and auxiliary parts. The primary advantage of clinching is the fact that a positive joint can be formed directly from the sheet metal material. The technique is also suitable for the joining of work pieces of different materials and thicknesses.

Add To Quote List
This product is already in quote request list
Browse the list
Categories: Clinchers, Eckold, Portable
Share:
  • Description
  • Additional information
Description

Eckold clinching is taking over the market, as the technique is not only suitable for oiled or coated sheet metal and stainless steel work pieces, but can also join sheet metal elements of varying thickness without issue. Eckold even offers solutions for work pieces made in brittle aluminum alloys and for the joining of non-forming metals such as spring steel with forming materials. Clinching energy consumption is low, and there are no toxic emissions or high noise levels. Compared with conventional joining techniques, Eckold clinching allows for capital cost savings of up to 55 %, while operating costs are typically 25 % lower.

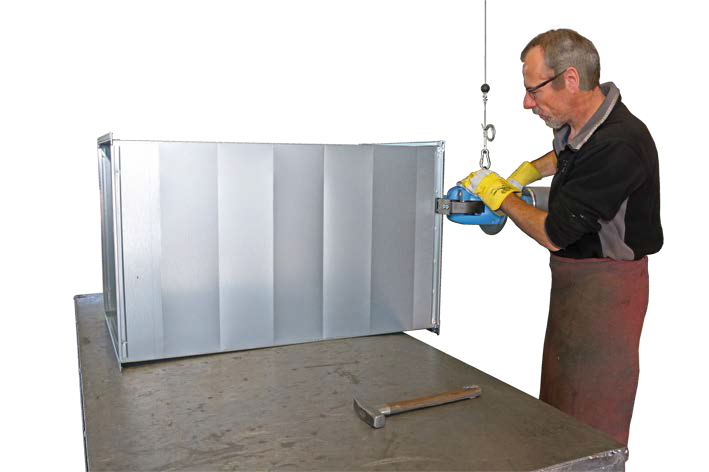

As there are many different requirements that joints must meet, Eckold offers tailor-made tools and machines, taking into account a customers specific applications. Eckold provides a huge variety of joining options and equipment, so that manufacturers can choose the best solution for their specific clinching tasks. Eckold clinching is a tried and tested method used worldwide in automated production plants with or without robots, Eckold also produces portable clinching tools for smaller operations.

Features of the MZD 45/35 P:

• Universal uses
• Interchangeable tool holders
• High pressure force
• Large throat
• 360° rotating suspension device
• Sturdy design, especially suitable for industrial continuous operations
• Affordable punch and dies
• Quiet operation
• Low maintenance
• Quick cycle time

Additional information
Force

7,870 lbs force (35 kN)

Pressure

Max. 87 PSI (6 bar)

Throat Depth

1.8" (45 mm)

Throat Height

3.5" (90 mm)

Capacity (Total Thickness)

Mild Steel – 0.138' (3.5 mm) Aluminum – 0.138' (3.5 mm)

Weight

21 lbs (9.6kg)
