|Dimensions||23 × 14 × 11 in|
|Maximum shearing capacity, mild steel||
24 ga./ 0.61 mm
|Maximum shearing capacity, stainless steel||
28 ga/ 0.38 mm
|Maxiumum shearing capacity,leaded brass||
0.025 in/ 0.61 mm
|Maximum shearing capacity, aluminum||
20 ga/ 1.0 mm
|Maxiumum shearing capacity, flexible plastic||
1/8 in/ 3.18 mm
|Maximum cutting length||
13 in/ 330 mm
|Back gauge range||
|Front gauge range||

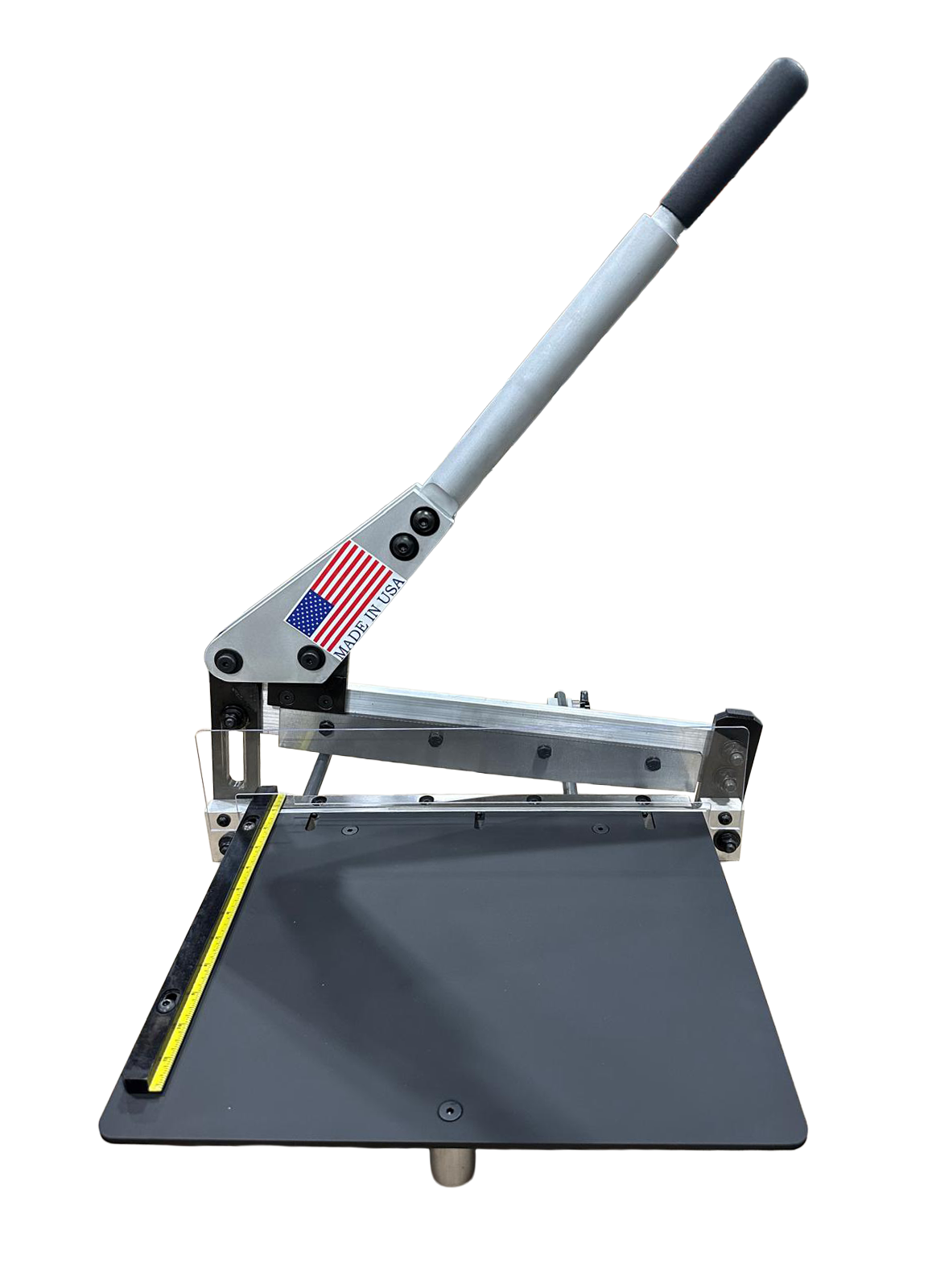

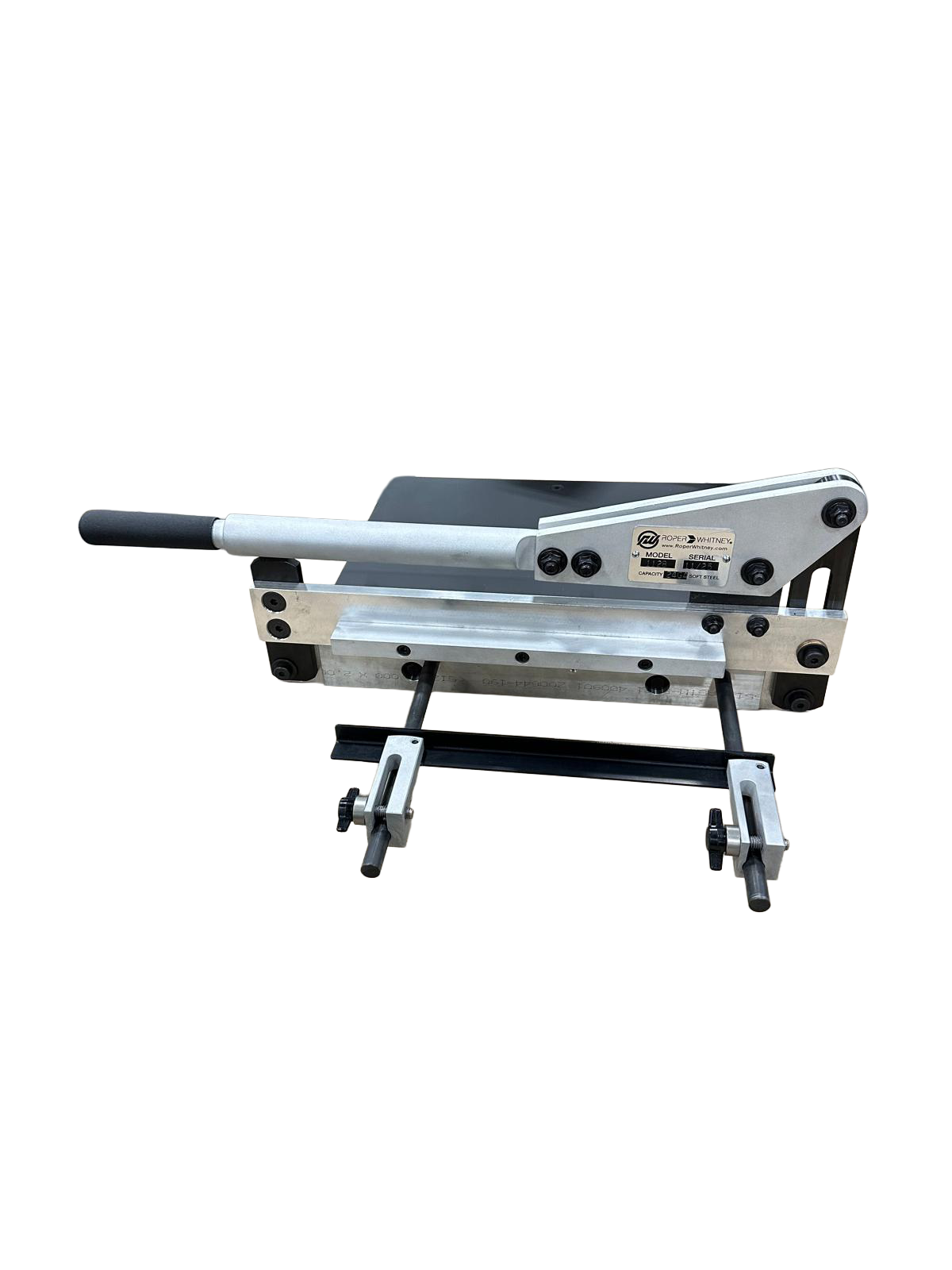

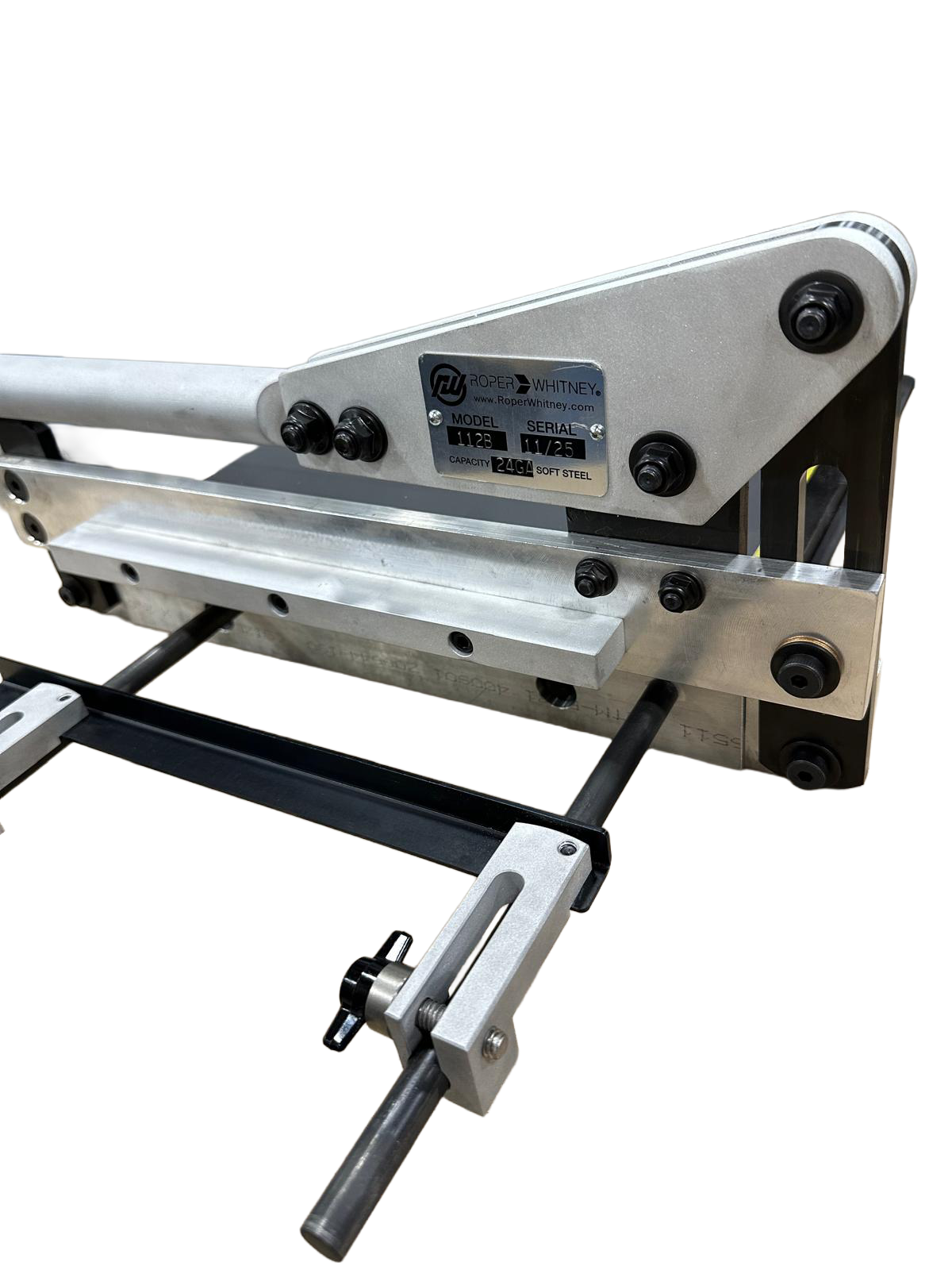

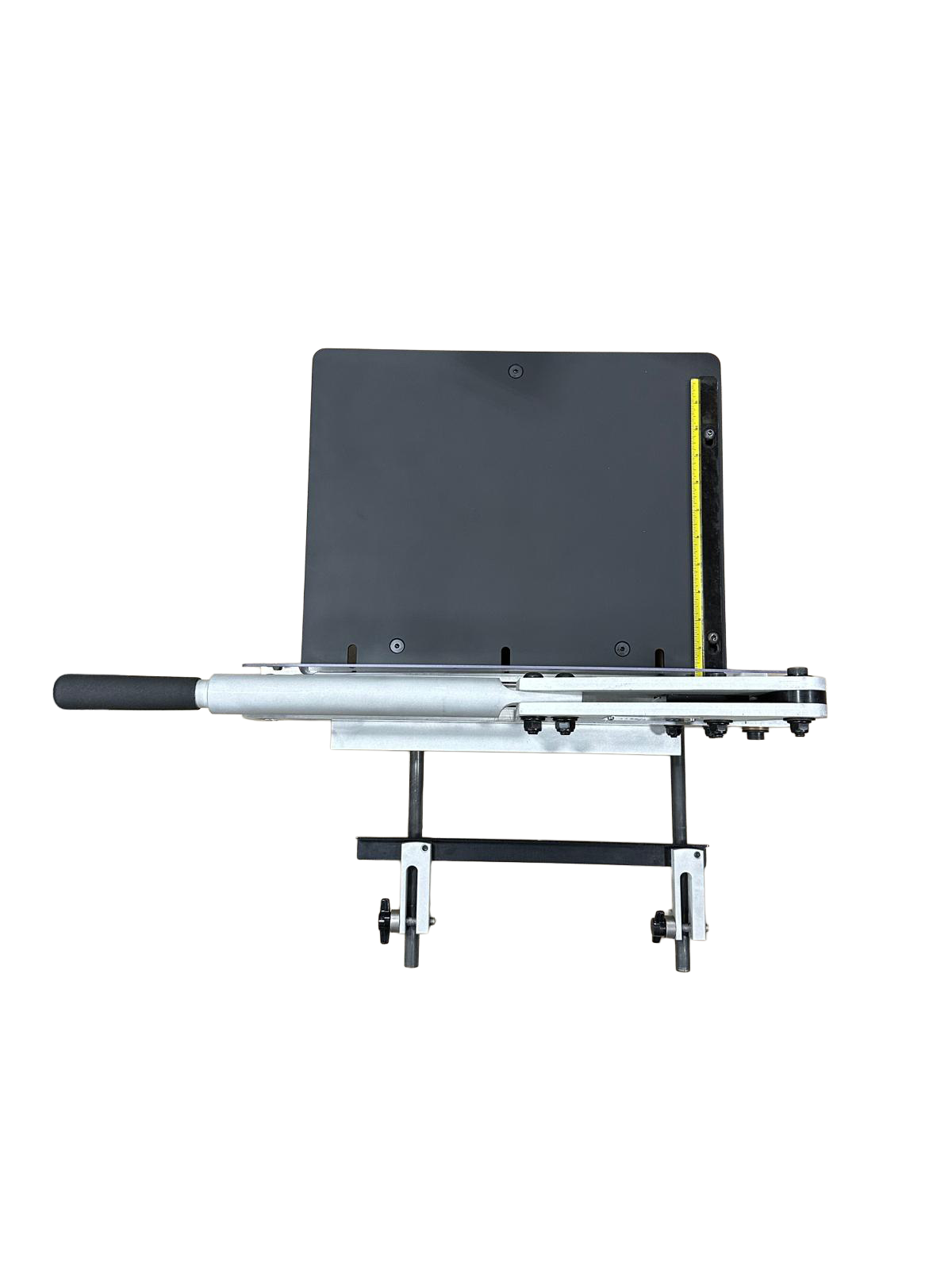

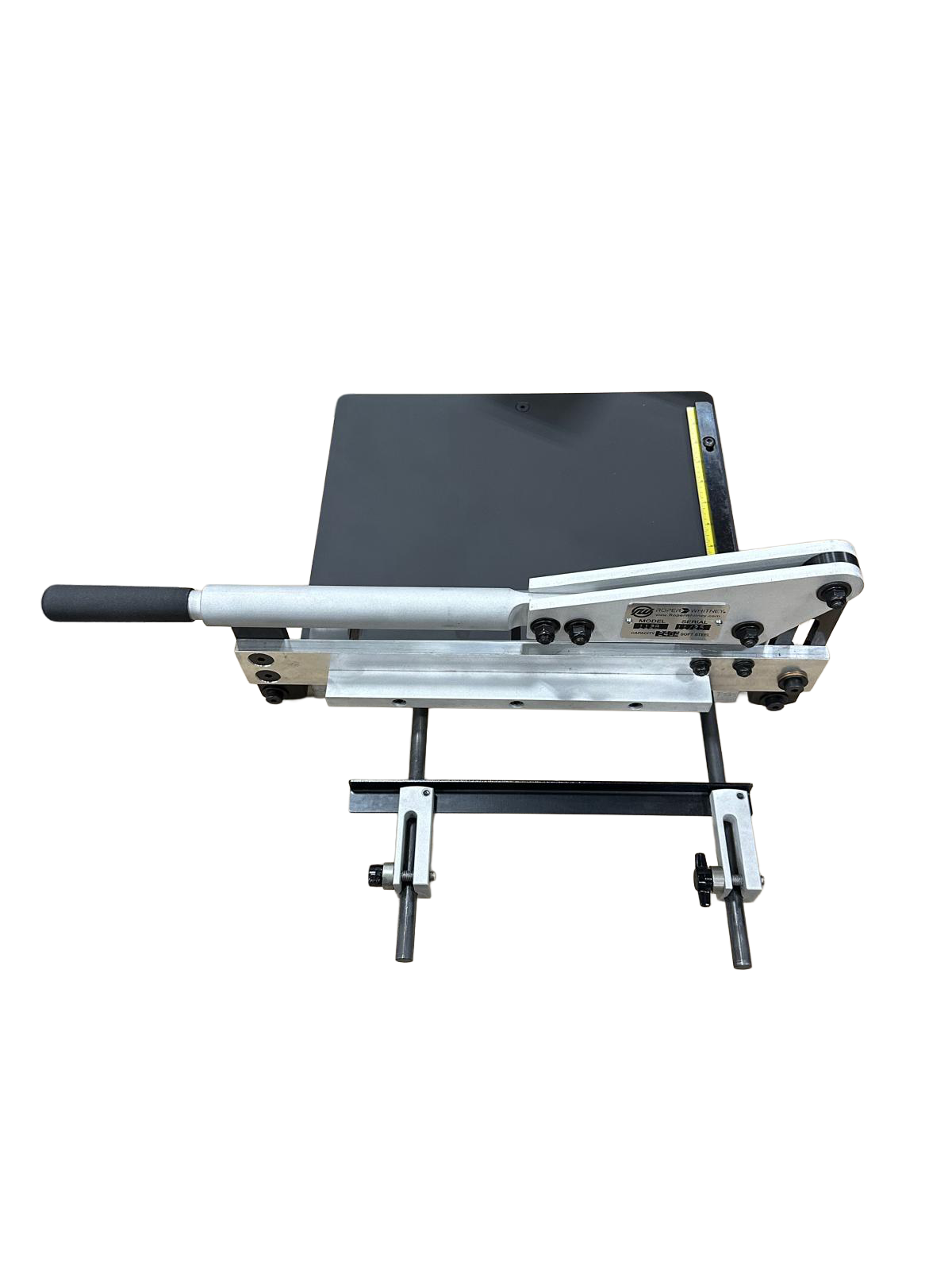

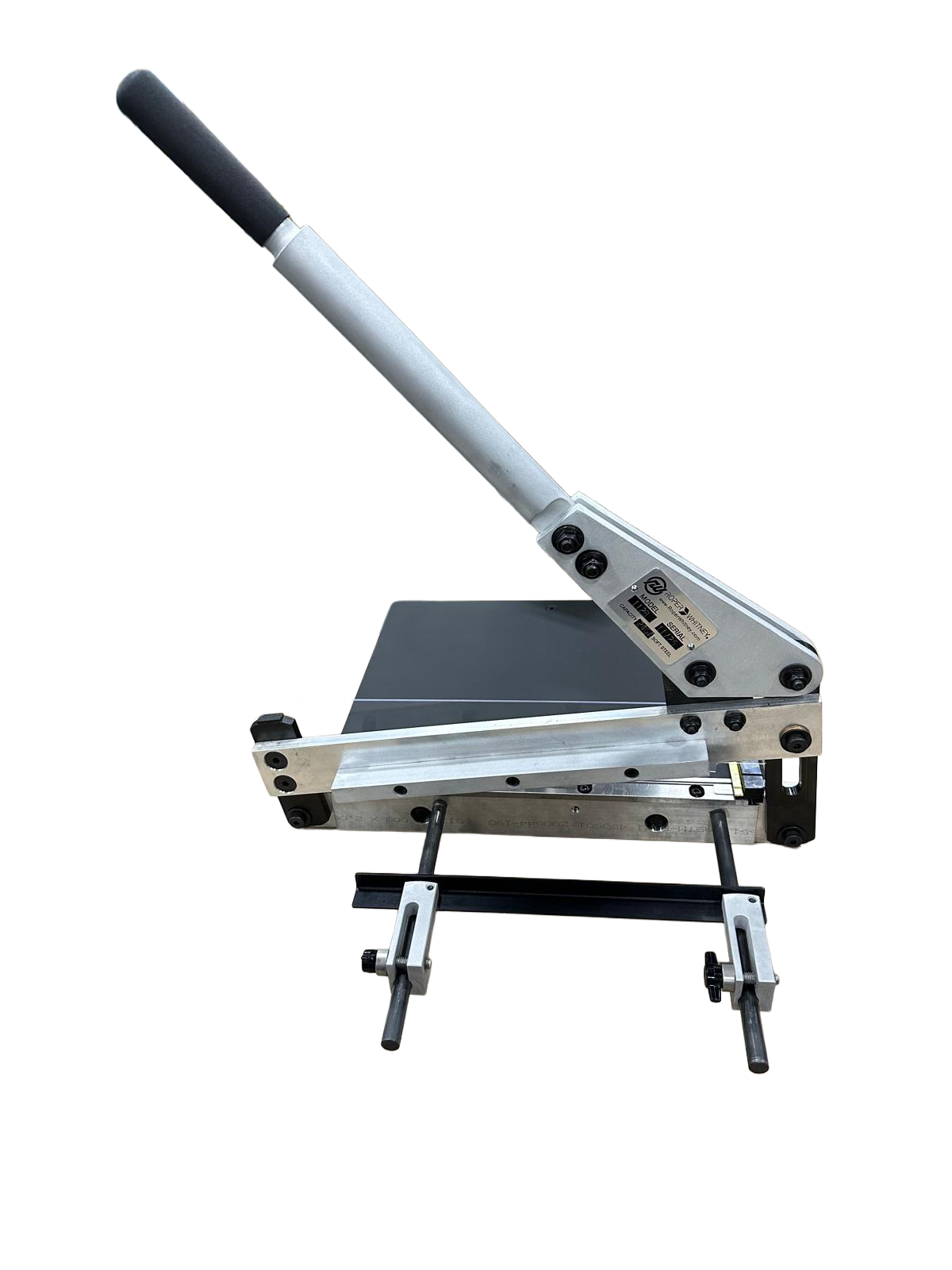

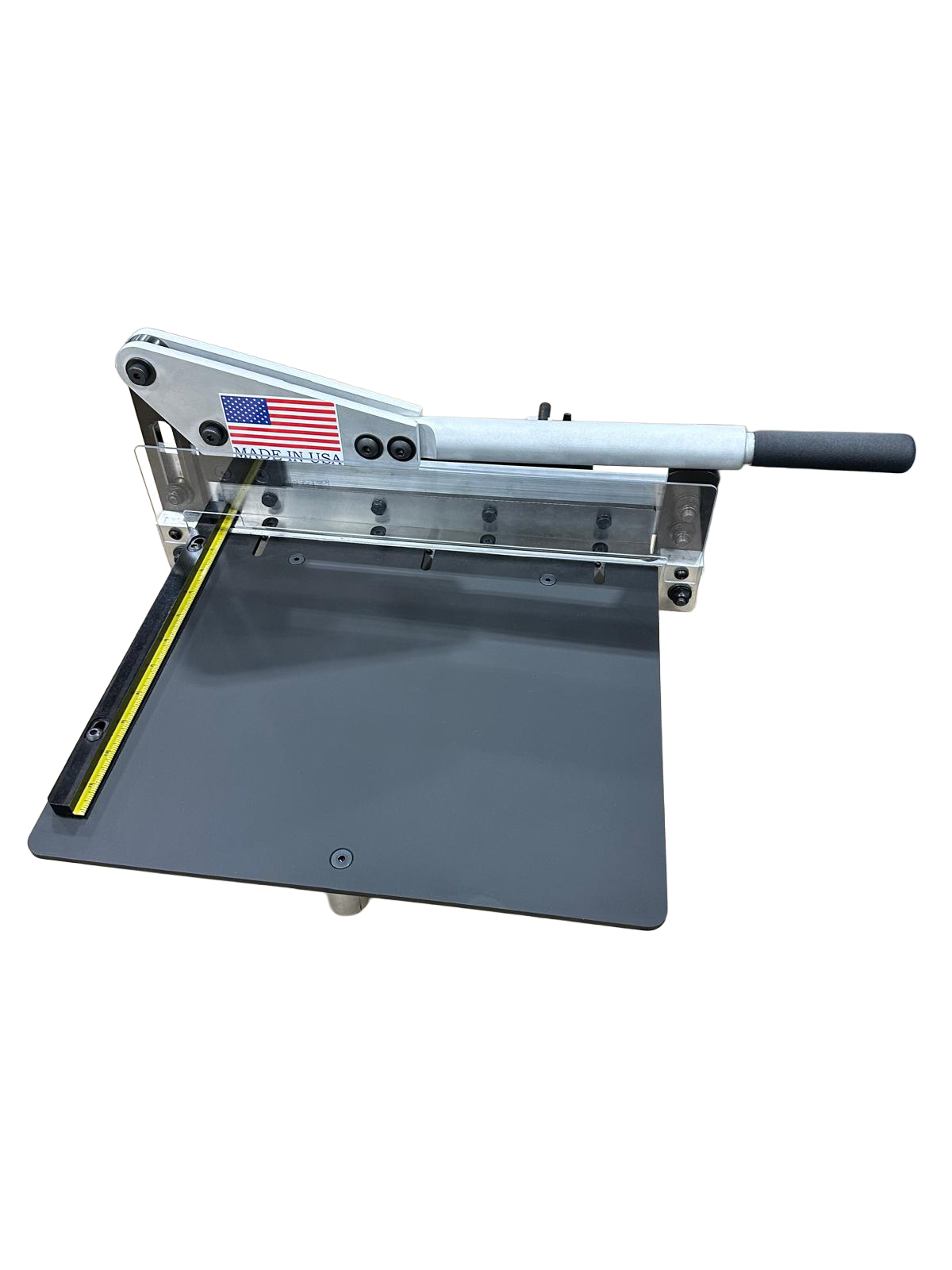

No. 112 Bench Shear

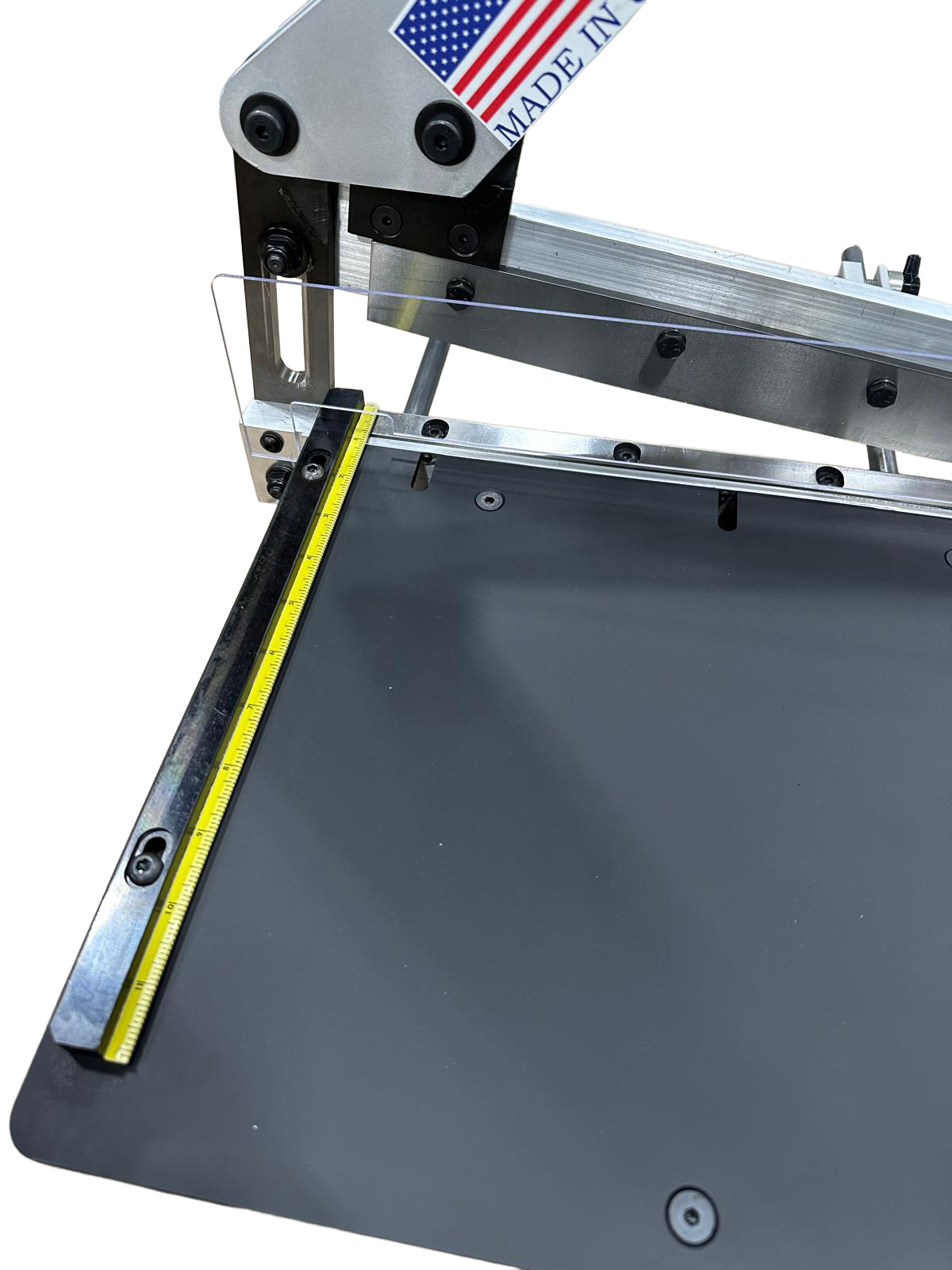

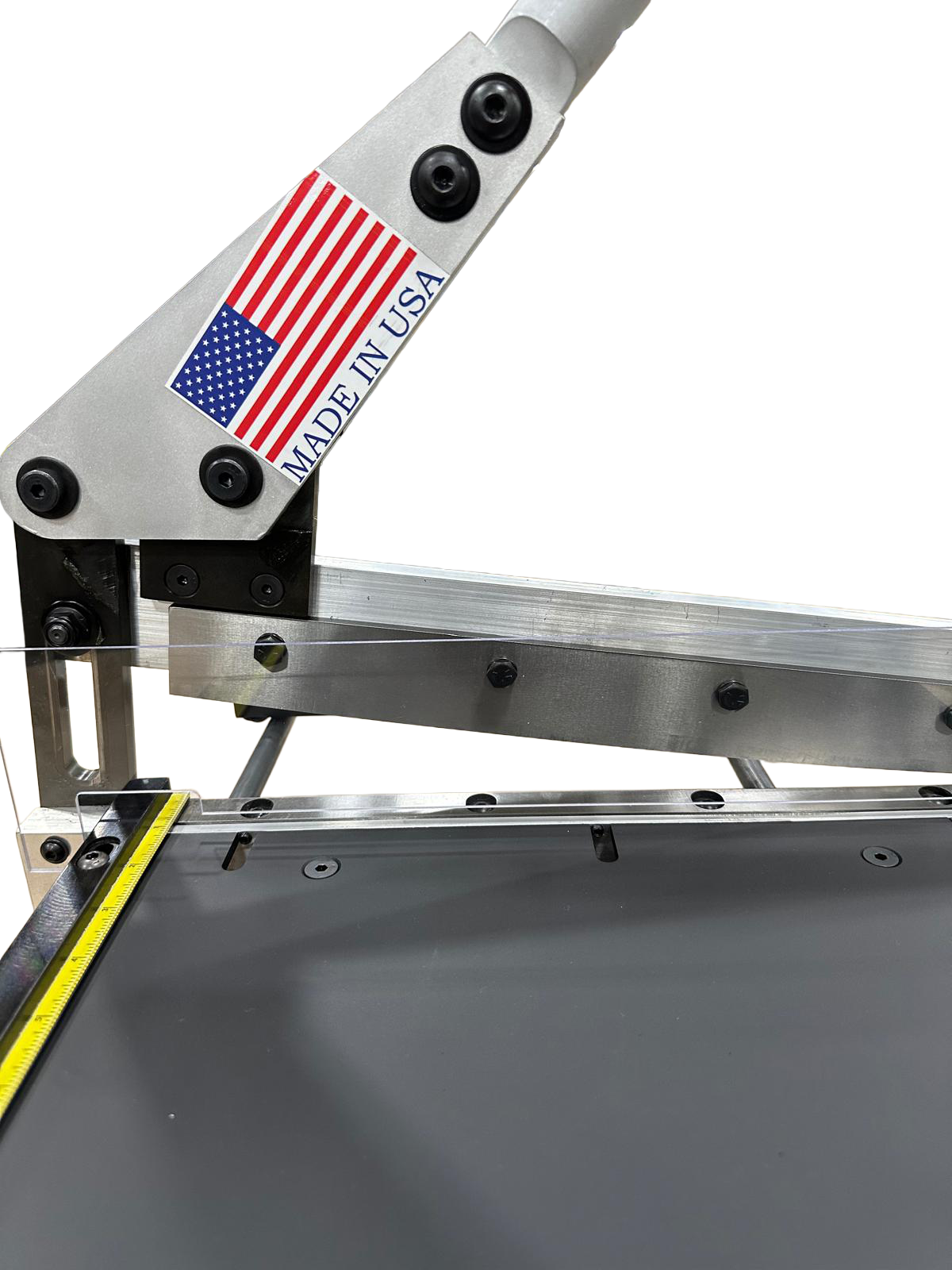

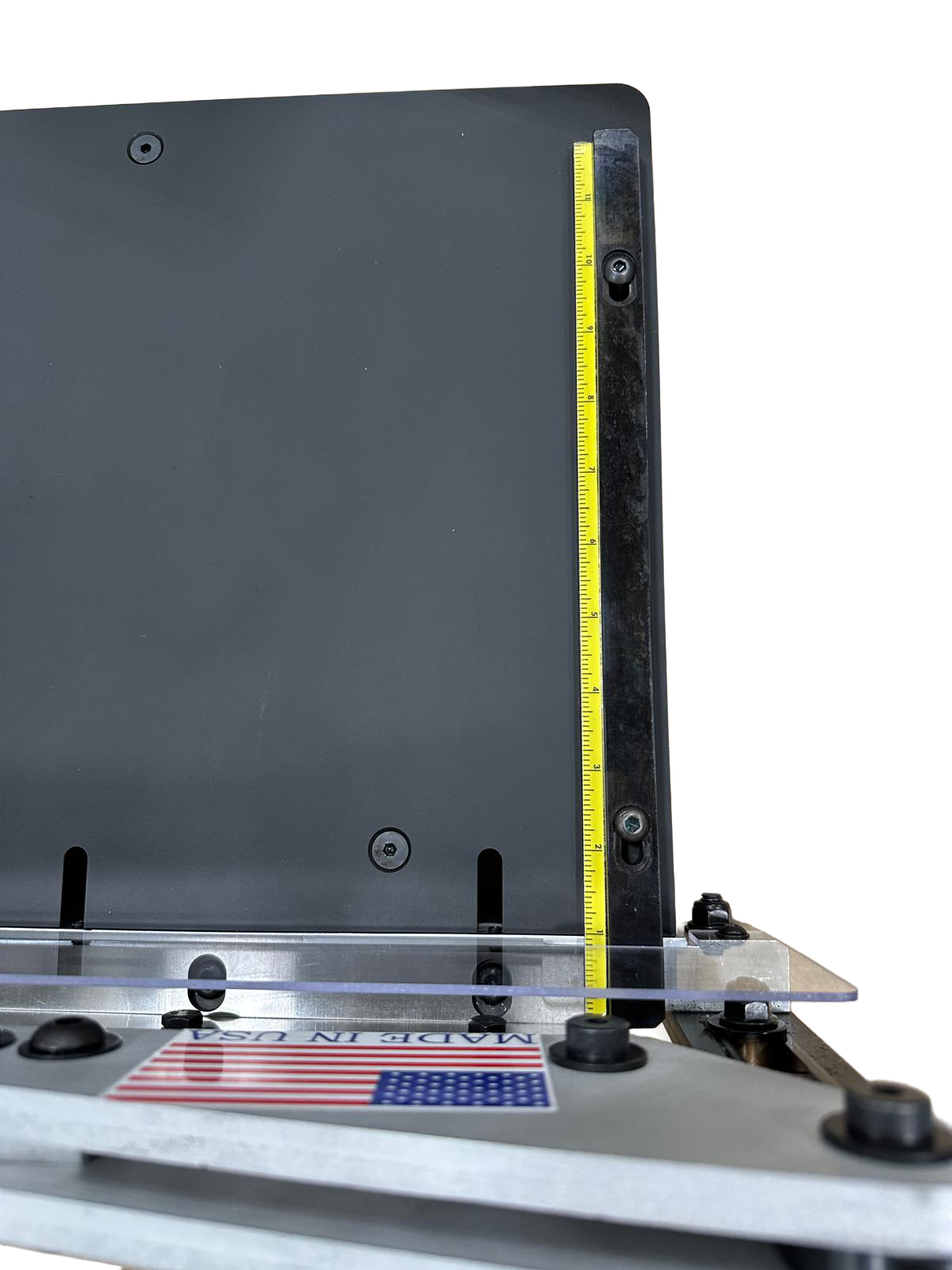

The No. 112 shear is portable with a full opening of 13″. Its divided work surface allows use of the full length. Other features include: choice of ruler placement for short strokes, front steel rule, protective front and rear plastic shields and safety latch locks.
The MSE1016 capacity is 16-gauge mild steel, 20-gauge stainless up to 121 inches in cutting length. the MSE1016 utilizes a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. Standard features include a 30-inch front-operated 2x back gauge system and 4-edge high carbon/high chromium (HCHC) blades and precision bearings. The MSE1016 is available as a standard model or in our popular “Performance Package” configuration which includes a 5′ squaring arm, a pair of front support arms, and an air operated sheet support available in either front or rear material return.
Roper Whitney’s Radius Master is a must for every fabricating shop. It’s a hydraulically operated, self contained unit for making radii in mild steel from 27 gauge up to 7 gauge without having to make blade adjustments and no setup. The Radius Master comes standard with 11 radii from 1/8″ to 1″ – 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, & 1″. Special size radii may also be ordered up to 3″ maximum radii. Specifications: Operated on 115 volts 1.0 amp and 80 psi shop air with safety foot switch as standard equipment.
