AB1014K

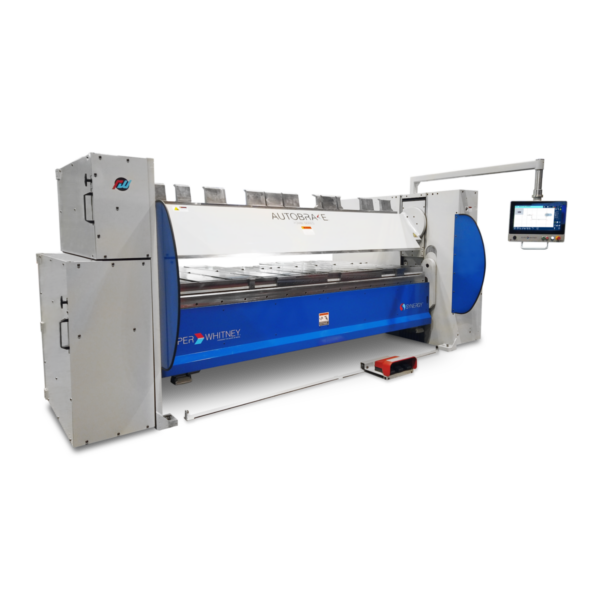

The AB1014K Autobrake from Roper Whitney provides precision and repeatability when forming up to 10 feet of 14 gauge mild steel or lighter materials. This sheet metal brake is a high speed solution to make a variety of bends while maintaining a high quality level in the end product. The unique Kombi box tooling adds to the machine’s straight and box folding capabilities to produce more complex shapes in less time. Various tooling options are provided to help customize to your specific needs, and can be provided in steel or hardened. It handles a wide range of materials, easily closes hems and withstands the force generated by maximum capacity.
Description
Standard Features
– 30° Clamping Beam
– 4” Kombi Box Tooling
– Manual Crowning Adjustments
– 61” Backgauge
– Spring Steel Backgauge Fingers
– 15” Touchscreen Monitor w/ Synergy Control
– Konnect Software Package (Included While Under Warranty)
Options & Upgrades
– 0.984” / 25 mm Bending Bar
– Hardened Tooling
– Side Mounted Squaring-Arm
– Left, Right or U-Shaped Backgauge Extensions
– 10’ Safety Laser Scanner
– Second Operator Foot Pedal (Front or Rear)
– Rolling Foot Pedal
– 18.5” Touchscreen Monitor w/ Synergy Control
– Konstruct Offline Software
The Synergy control offers high speed versatility to an end user. It offers multiple methods of programming from simple line-by-line to draw-to-auto program. Its network capabilities allow for multiple options, such as; Konnect, Konstruct, Mobile Konstruct, and overall shop management through linking multiple machines. See more information on the Synergy Software by Roper Whitney.
The Autobrake design is a plate and weldment steel construction, delivering superior performance and features in a simplified rigid design. End housings are a plate-type construction bringing drive components close together for improved stiffness and performance. Actuating mechanisms are secured in rigid mounts at the outside of the housings, allowing easy maintenance.
Clamping and hemming capabilities come standard and are already included in the software. Clamping and hemming power is delivered to the clamp jaws by a series of spring washers to provide variable clamping pressures with a shock-absorbing end stop. This provides reliable clamping pressure to create open, tear drop, and closed hems to best suit your needs.
The Autobrake is also available with an optional rotating Kombi beam. This unique tooling assembly adds to the machines straight and box folding capabilities to produce more complex shapes in less time. It handles a wide range of materials, easily closes hems and withstands the force generated by maximum capacity forming operations.
Additional information
| Weight | 9132 lbs |
|---|---|
| Dimensions | 159 × 89 × 68 in |
| Bending capacity (Mild Steel) | 14 ga/ 2,0 mm |
| Bending capacity (Stainless) | 16 ga/ 1,5 mm |
| Bending length | 122 in/ 3100 mm |
| Bending bars | 0.787 in/ 20 mm, 0.394/ 10 mm, 0.275 in/ 7 mm |
| Back gauge depth (standard) | 61 in/ 1550 mm |
| Clamping beam opening height | 7.3 in/ 185 mm |
| Clamping beam straight bar tooling | 30 degrees |
| Folding beam adjustment | 2 in/ 50 mm |
| Crowning of the folding beam | 5-point 0” – 0.030” adjustment |
| Working height | 34 in/ 864 mm |
| Back gauge servo motor | 3/4 hp |
| Clamping beam motor | 2 hp/ 1.5 kw |
| Bending beam motor | 2 hp/ 1.5 kw |
