AB1212K

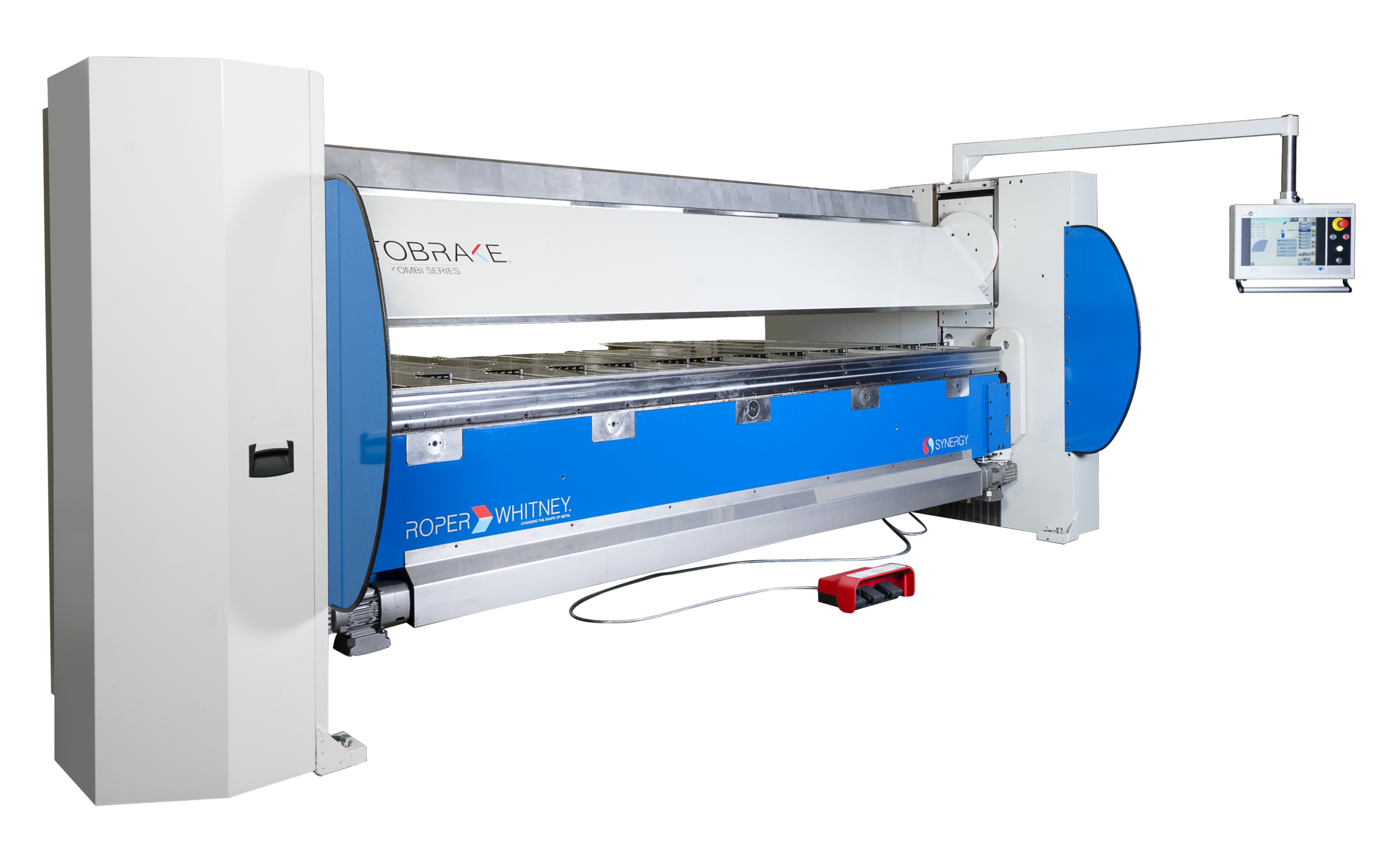

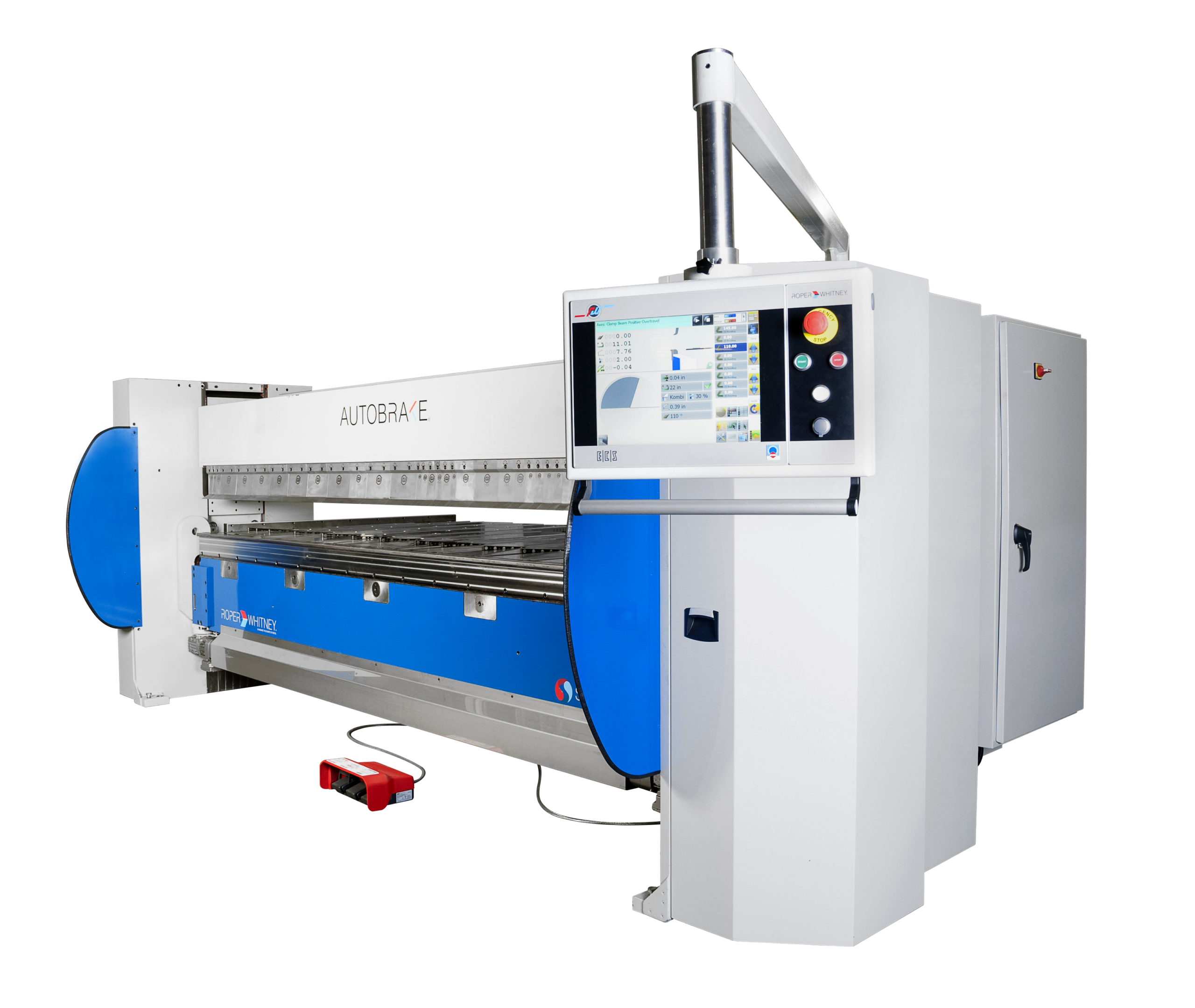

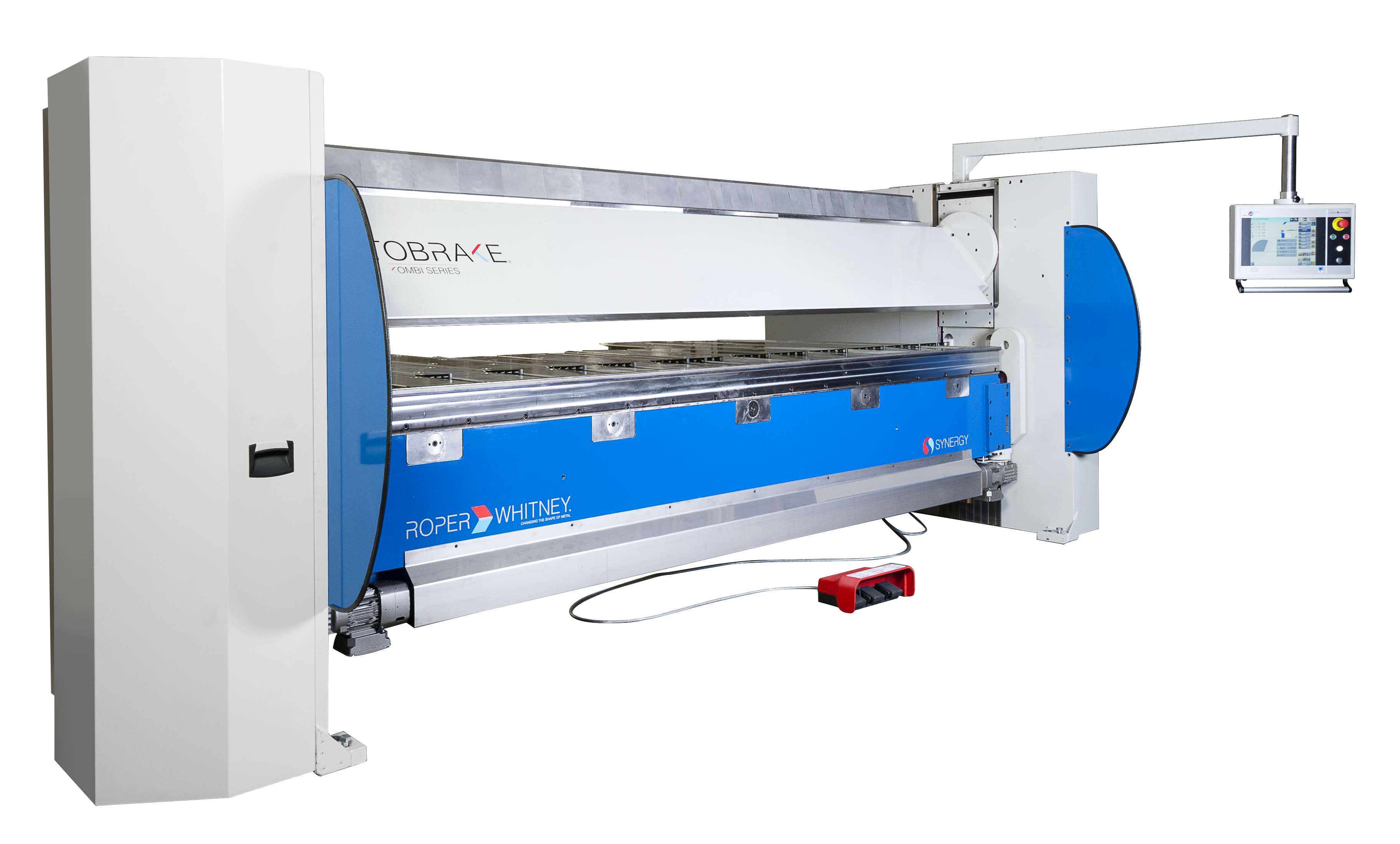

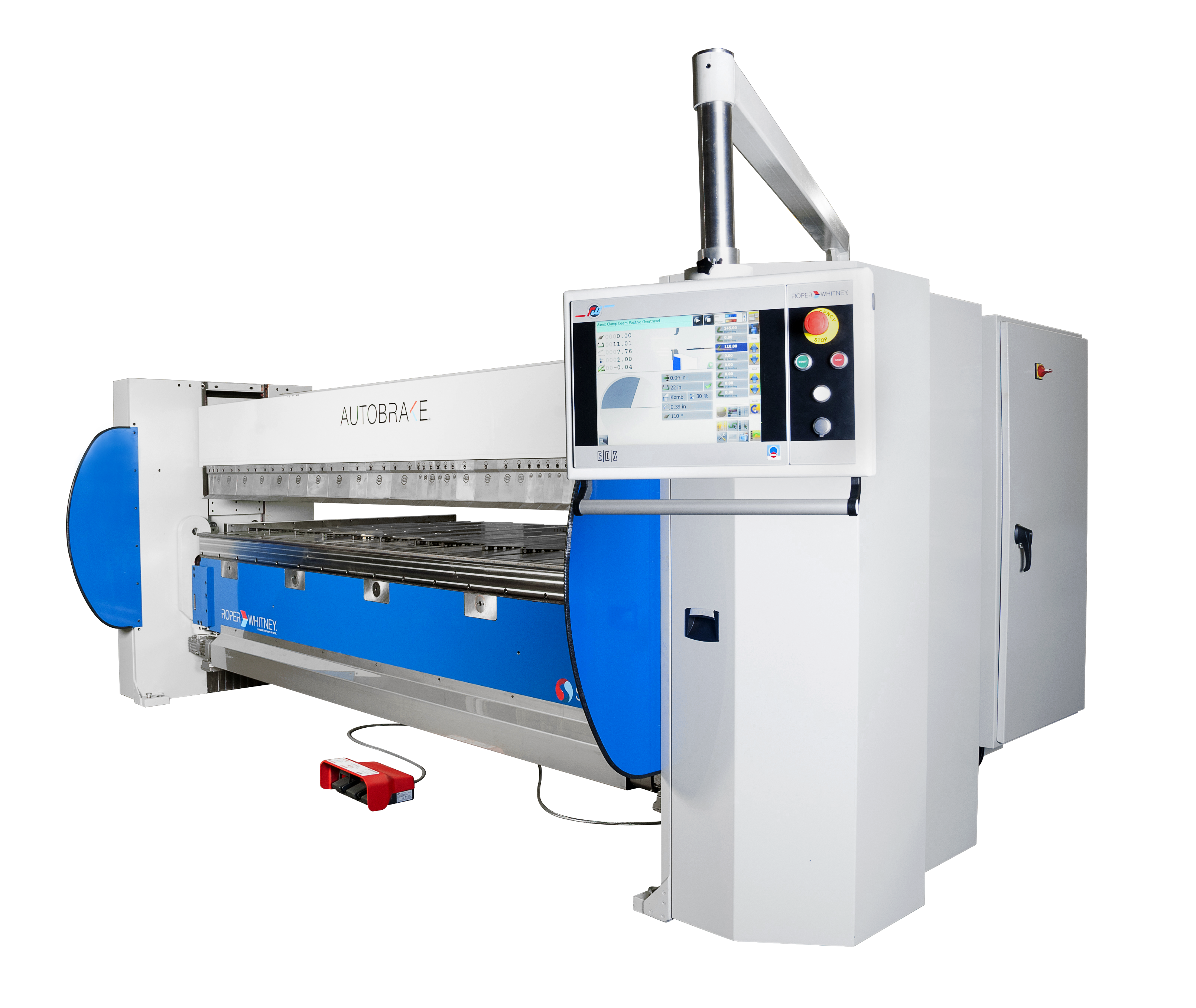

The 1212K Autobrake® provides accuracy and repeatability when forming up to 12ft long 12 gauge or lighter materials. This sheet metal brake is a high speed solution to make multiple bends while maintaining a high quality level in the end product. The 1212K incorporates a rotating Kombi beam making this machine even more versatile, this unique tooling assembly adds to the machine’s straight and box folding capabilities to produce more complex shapes in less time. The box tooling is 6.3″ in height, precision ground and laser hardened to 60. Pieces are also laser etched with the length of the tool for easy box set up. The backgauge provides accurate part location through the use of servo drives and are expandable with optional backgauge extensions. The machines rigid design includes crowning adjustments to ensure accurate bending regardless of raw material stresses, it can handle a wide range of materials, easily closes hems and withstands the force generated by max capacity forming operations.
Description
Standard Features Include:
– 30° Clamping Beam
– Hardened 6.3” Quick-Change Kombi Box Tooling
– Hardened Upper Jaw, Lower Jaw & Bending Bars
– Manual Crowning Adjustments

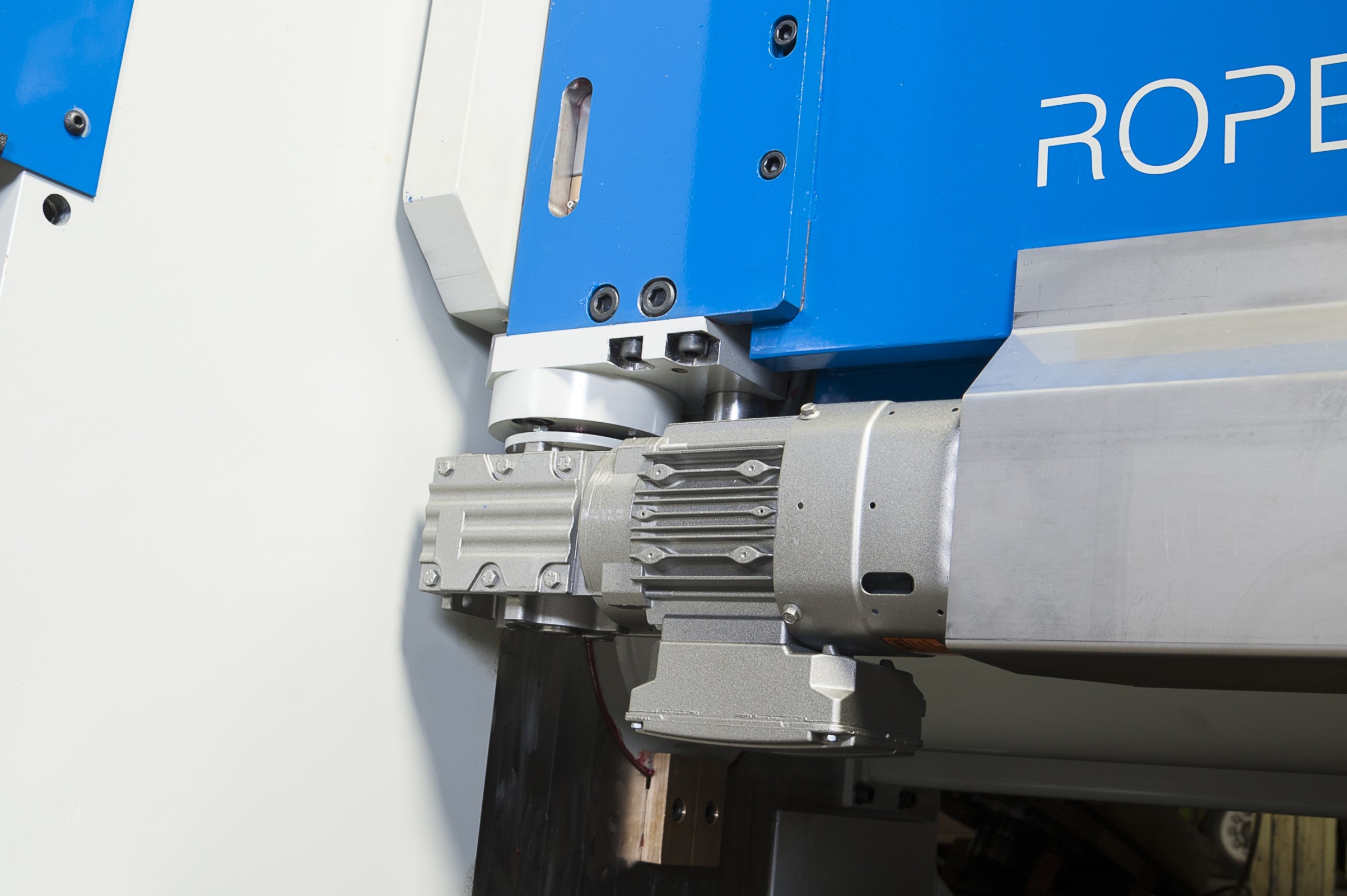

– Automatic Material Thickness Adjustment
– 61” Backguage
– Spring Steel Backgauge Fingers
– 18.5” Touchscreen Monitor w/ Synergy Control
– Konnect Software Package (Included While Under Warranty)
Options & Upgrades:
– Segmented Bending Beam Tooling Upgrade
– 0.984” / 25 mm Bending Bar
– Automatic Pivot Point Adjustment
– Side Mounted Squaring-Arm
– Left, Right or U-Shaped Backgauge Extensions
– Adjustable Height Backgauge
– Solid Backgauge Fingers
– Backgauge Ball Transfers (Steel or Acetyl)
– 10’ Safety Laser Scanner
– Second Operator Foot Pedal (Front or Rear)
Rolling Foot Pedal
– Konstruct Offline Software
Additional information
| Bending capacity (Mild Steel) | 12 ga/ 2.7 mm |
|---|---|
| Bending capacity (Stainless) | 16 ga/ 1.6 mm |
| Bending length | 150 in/ 3810 mm |
| Bending bars | 0.472 in/ 12 mm, |
| Back gauge depth (standard) | 61 in/ 1550 m |
| Clamping beam opening height | 7.9 in/ 200.4 mm |
| Clamping beam straight bar tooling | 30 degrees |
| Folding beam adjustment | 3.14 in/ 80 mm |
| Crowning of the folding beam | 5-point 0" – .030" adjustment |
| Working height | 35 in/ 889 mm |
| Machine weight | 15,600 lbs/ 7,076 kg |
| Back gauge servo motor | 3/4 hp |
| Clamping beam motor | 4 hp/ 3 kw |
| Bending beam motor | Dual 4 hp/ 3 kw |
| Max. Box Depth | 6.3 in/ 160mm |
