Eckold Multiformer MF 500

SKU: 020.200.2600 / 020.200.2601 / 020.200.2602 / 020.200.2603 / 020.200.2608 Categories: ,

Description

The all-around machine with multiple functions to fabricate sheet metal: planishing, wheeling and shrinking. It can be combined with the GL2 Planishing Hammer.

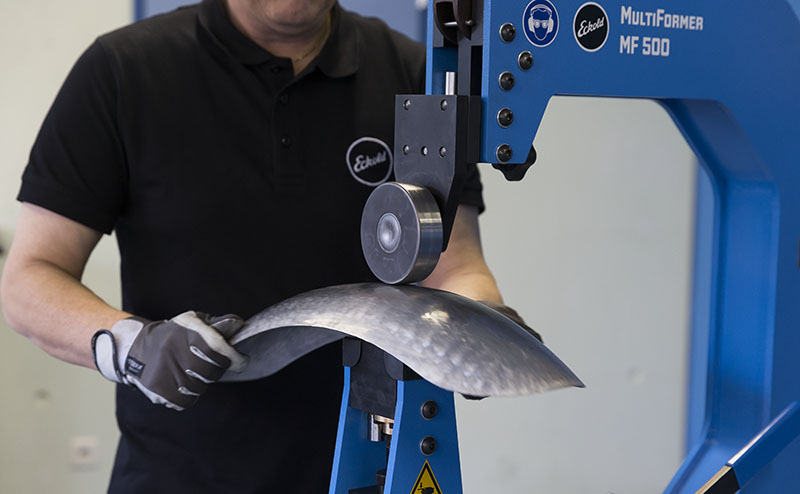

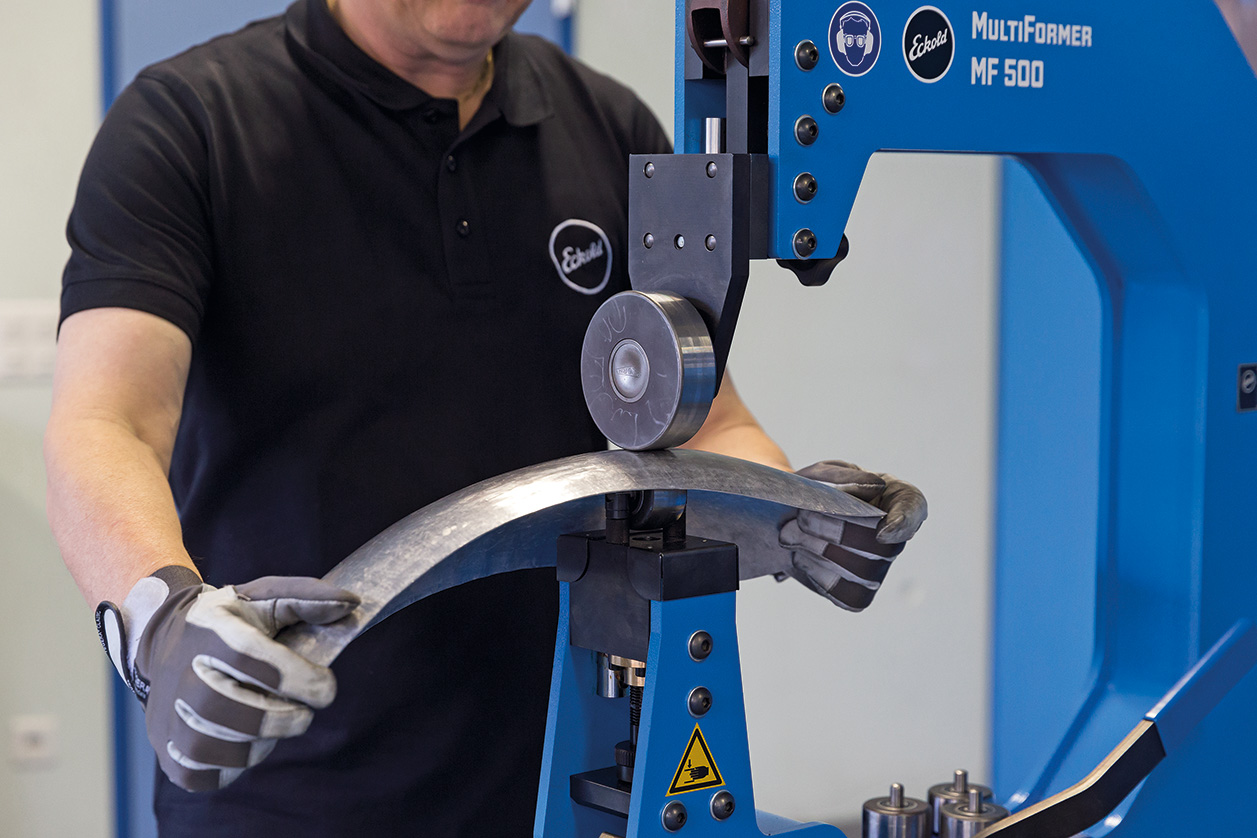

The Eckold Multiformer MF 500 is three machines in one. Three forming operations can be realized: planishing, wheeling and shrinking. The concept is clever and sophisticated: The different modules fit on the same C-frame and transform it into a planishing hammer, english wheel or a shrinker, according to your requirements. A smart space saving device.

The Multiformer MF 500 is very attractive to professionals and private restorers, technical schools and artists.

The Eckold Multiformer MF 500 is available in 3 different versions:

  • MF 500 GL2 Planishing Hammer Machine

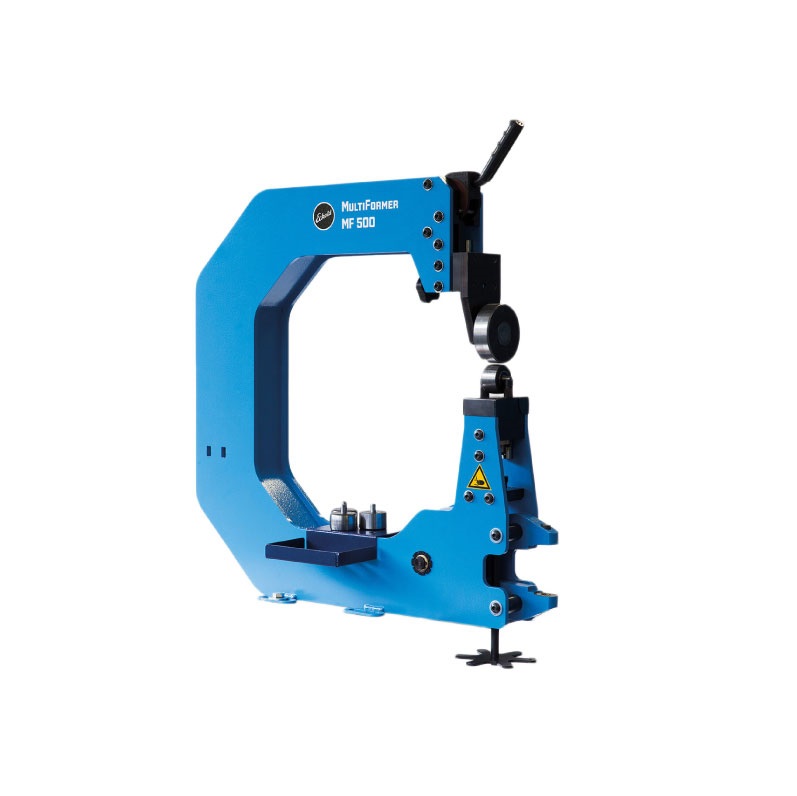

  • MF 500 EW English Wheeling Machine
  • MF 500 MAX English Wheeling & Handformer Machine

View Tooling Catalog

Start Your Quote

Additional information

Weight 163 lbs
Dimensions 27.5 × 4 × 34 in
Throat depth horizontal

19.7" (500 mm)

Throat height vertical

19.5" (495 mm)

Forming capacity

– Steel (Rm = 400N/mm2) – 0.059 (1.5 mm)
– Aluminum (Rm = 250N/mm2) – 0.078 (2.0 mm)
– Stainless Steel (Rm = 600N/mm2) – 0.40 (1.0 mm)
