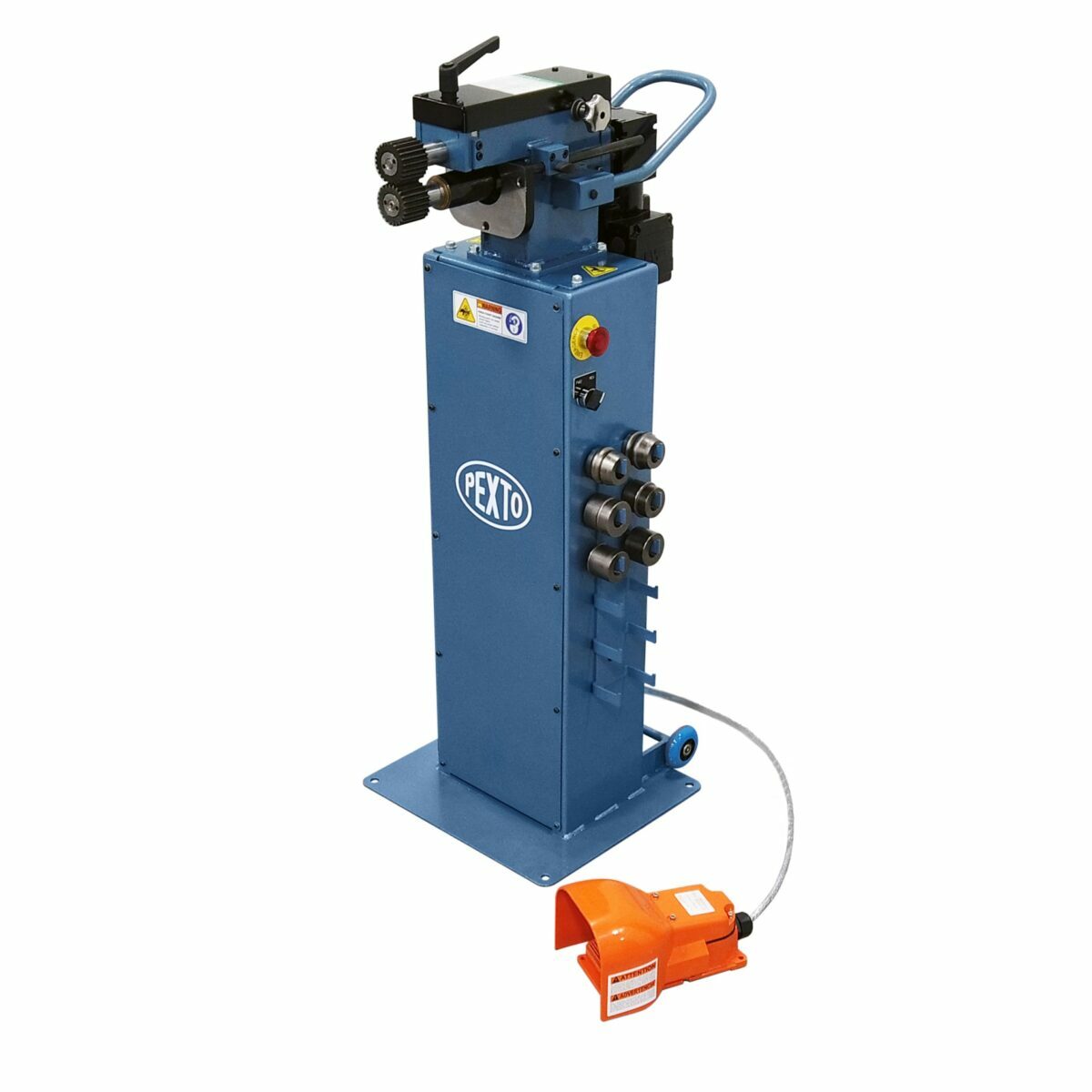

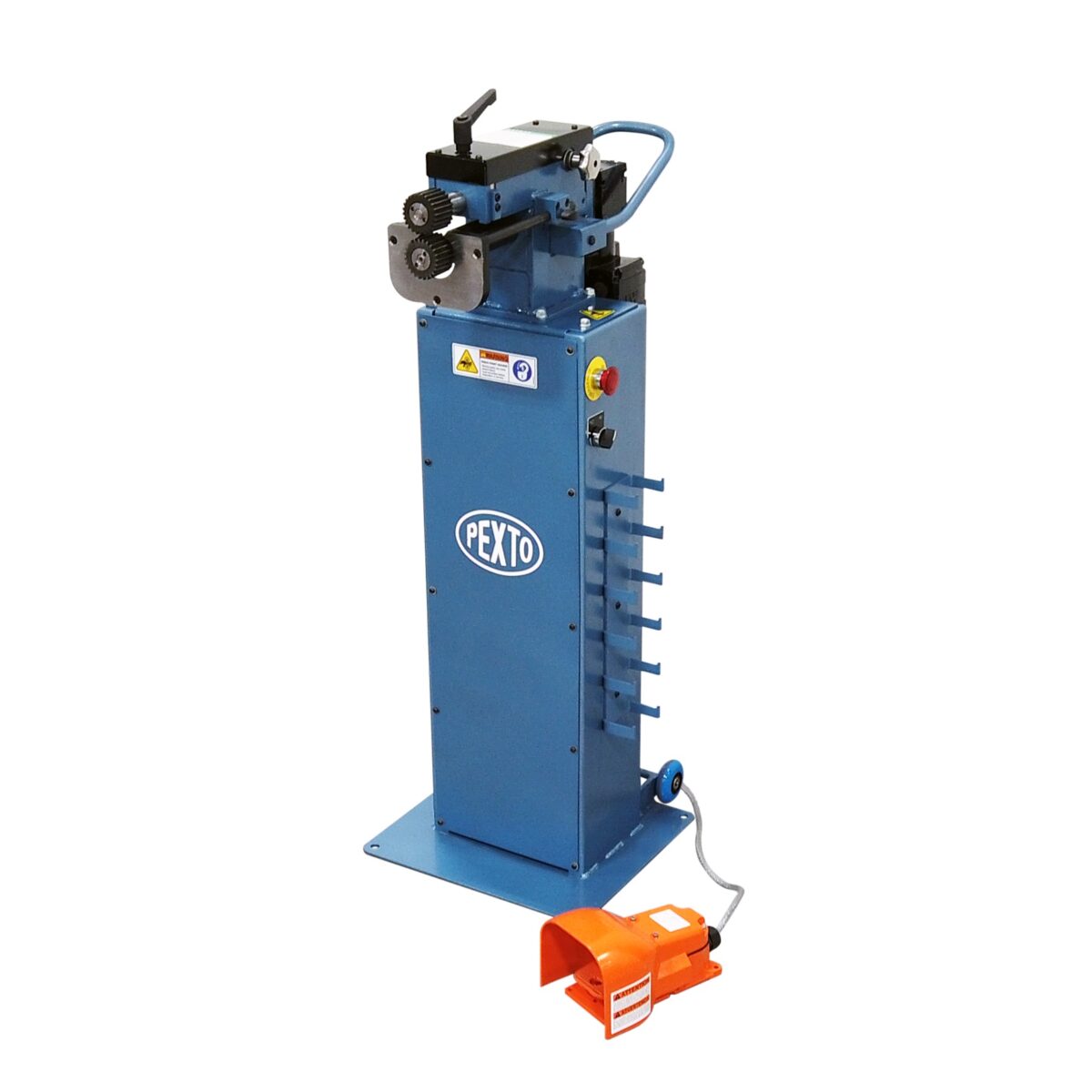

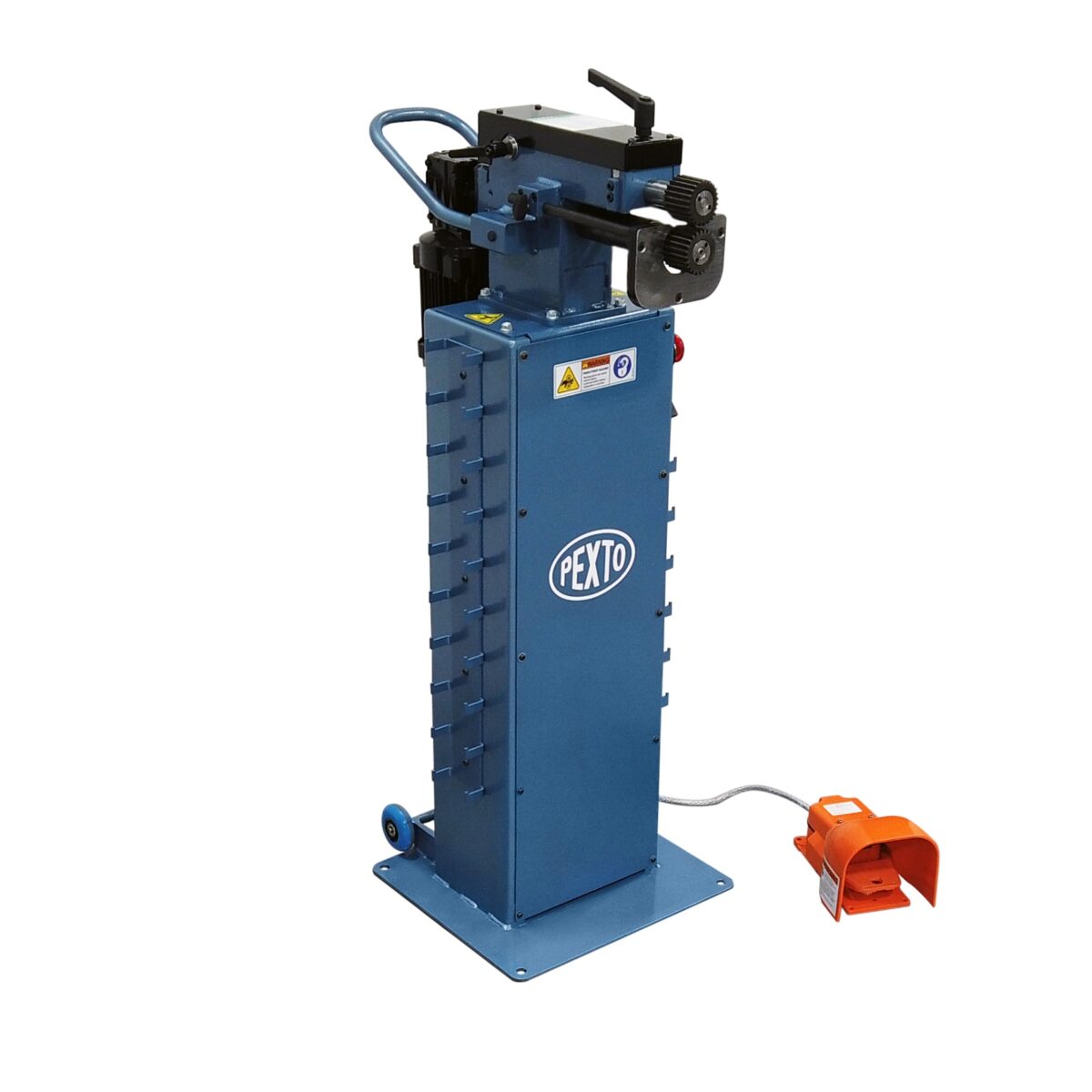

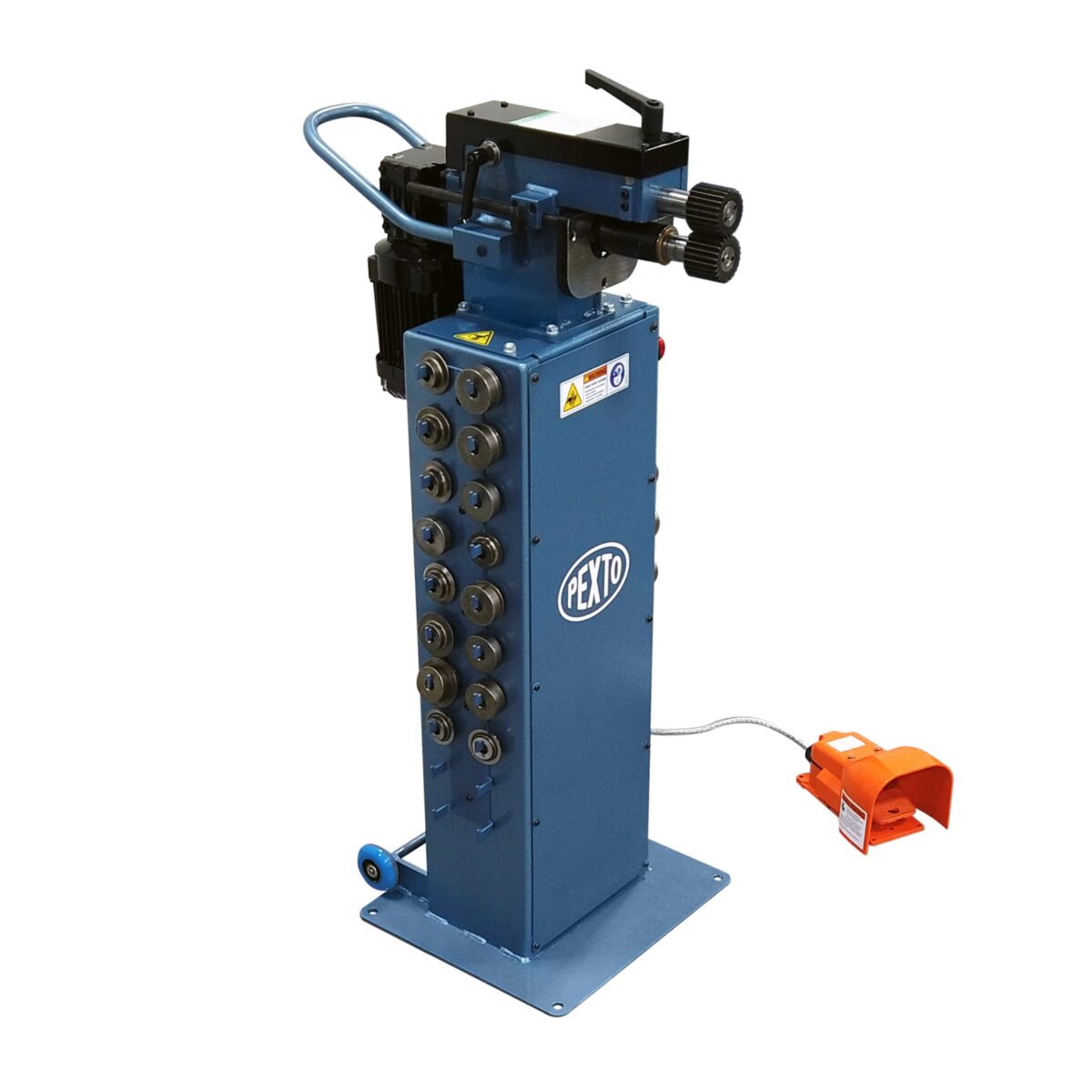

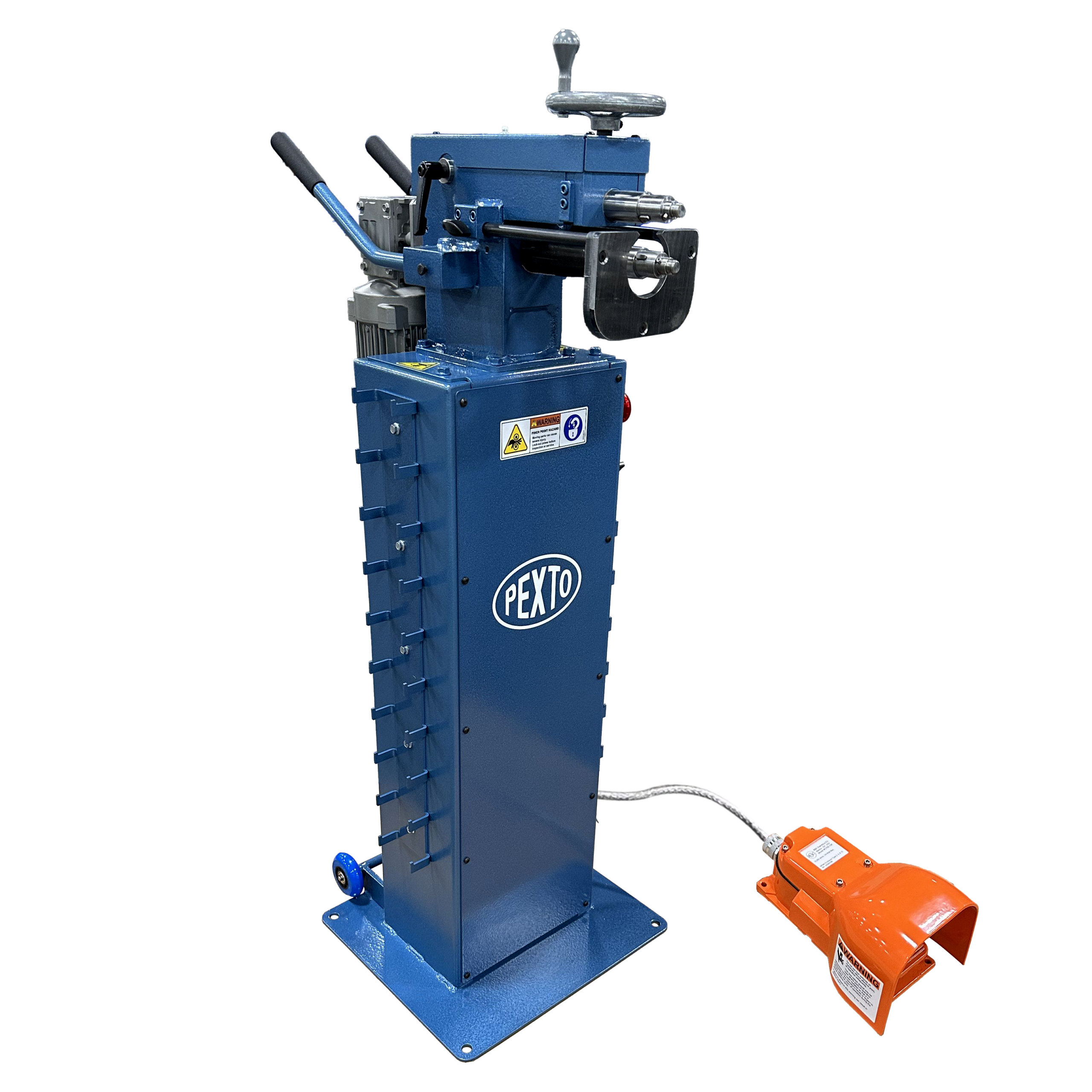

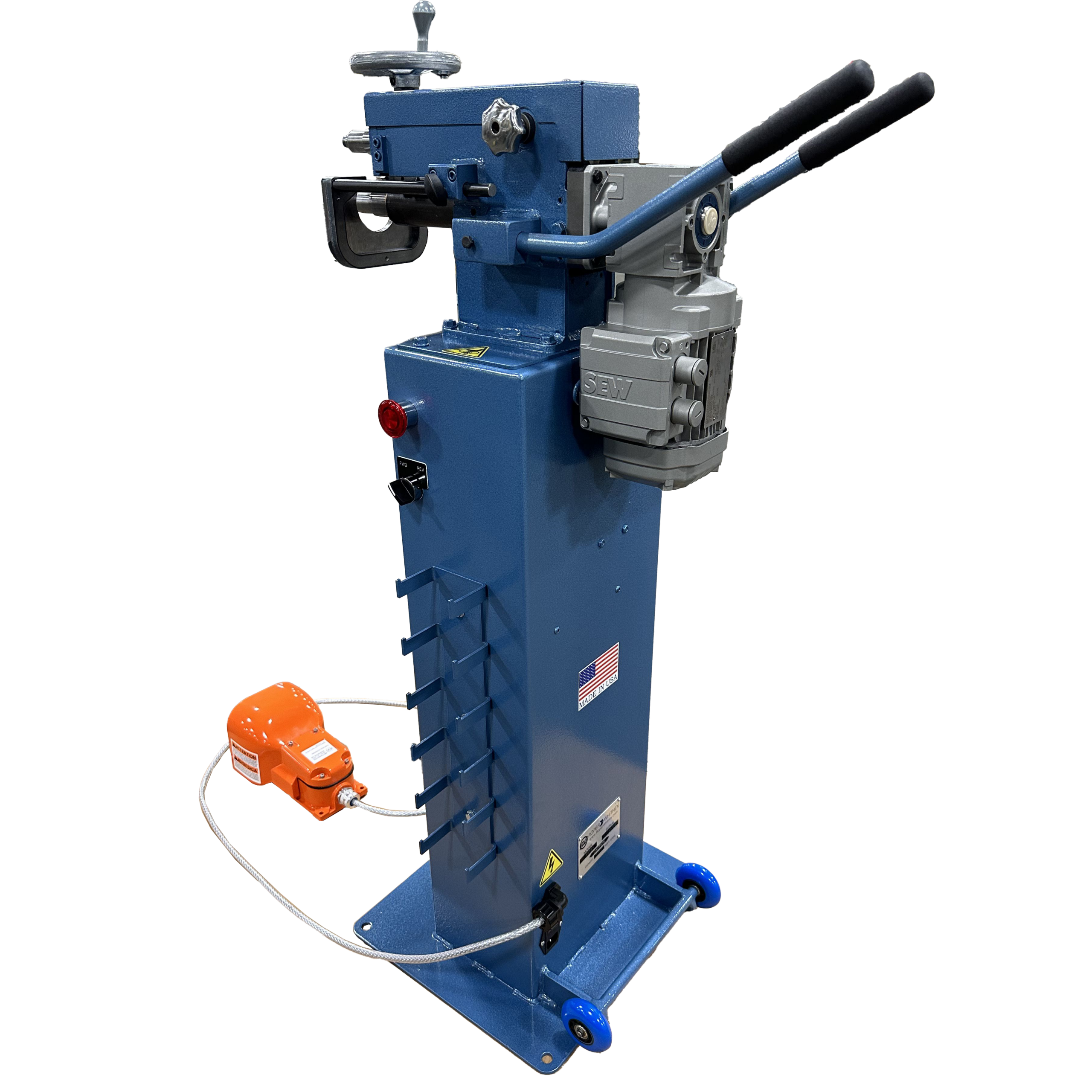

PR 720 Powered Rotary Machine

$4,850.00

The brand new Pexto PR 720 Powered Rotary Machine offers an adjustable throat depth gauge, clockwise and counter-clockwise rotation, 120 voltage, optional wheels for mobility and more. The PR 720 is rated for 20 gauge mild steel and has a throat depth of 7” inches.

SKU: 184110620 Category: Powered Rotary Machines
Share:
  • Description
  • Additional information
Description

The brand new Pexto PR 720 Powered Rotary Machine offers a broad variety of shapes and capabilities in forming sheet metal for a combination of uses: beading, crimping, setting down, double seaming, turning, burring, wiring, elbow edging, flanging, and flattening. All are precise in the job they do and are readily adaptable to job requirements. The roll chart is indicative of the machines flexibility. The PR 720 is rated for 20 gauge mild steel and has a throat depth of 7” inches. A variety of different roll options may be ordered from the roll chart to use with this machine. Features include an adjustable throat depth gauge, clockwise and counter-clockwise rotation, 120 voltage, optional wheels for mobility and more.

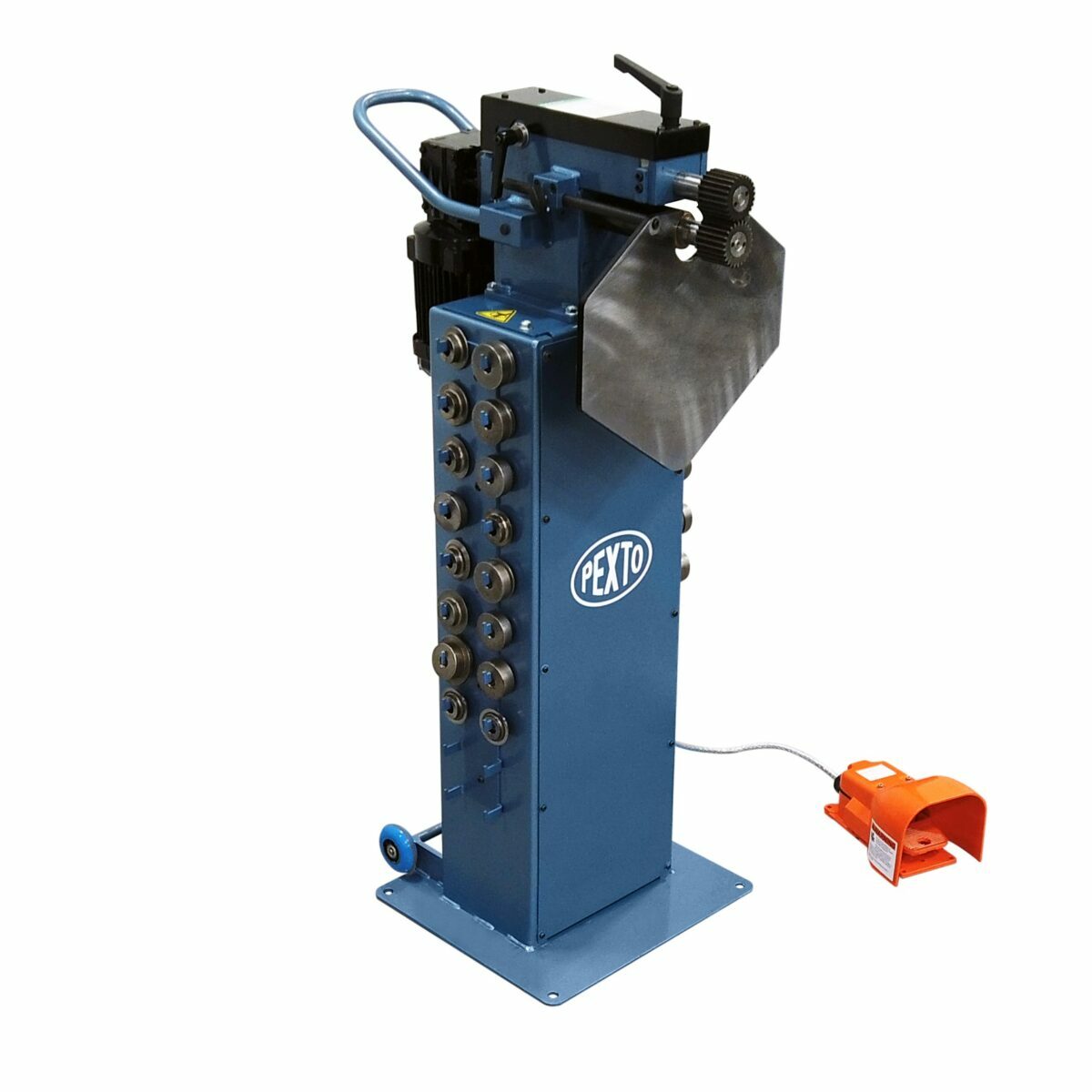

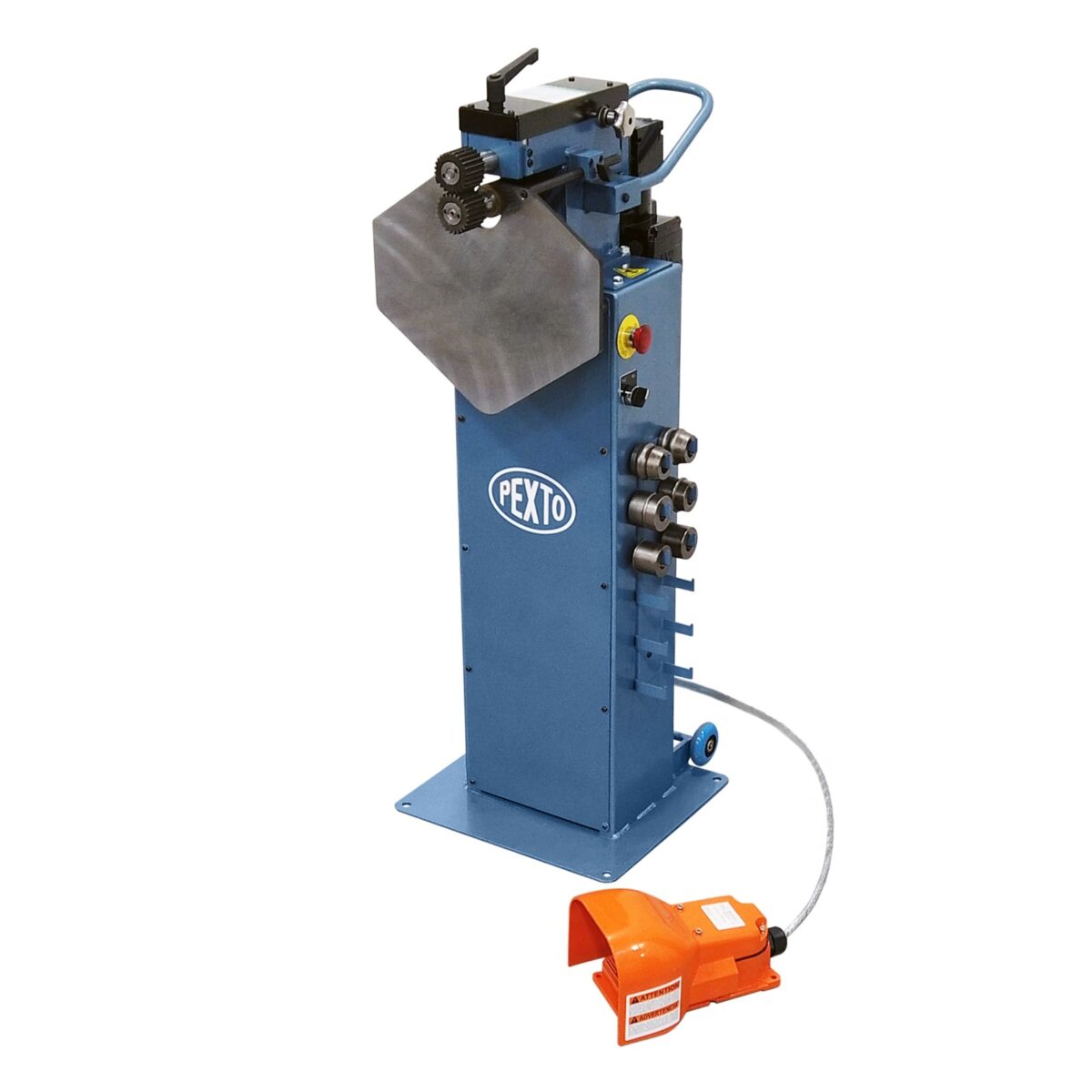

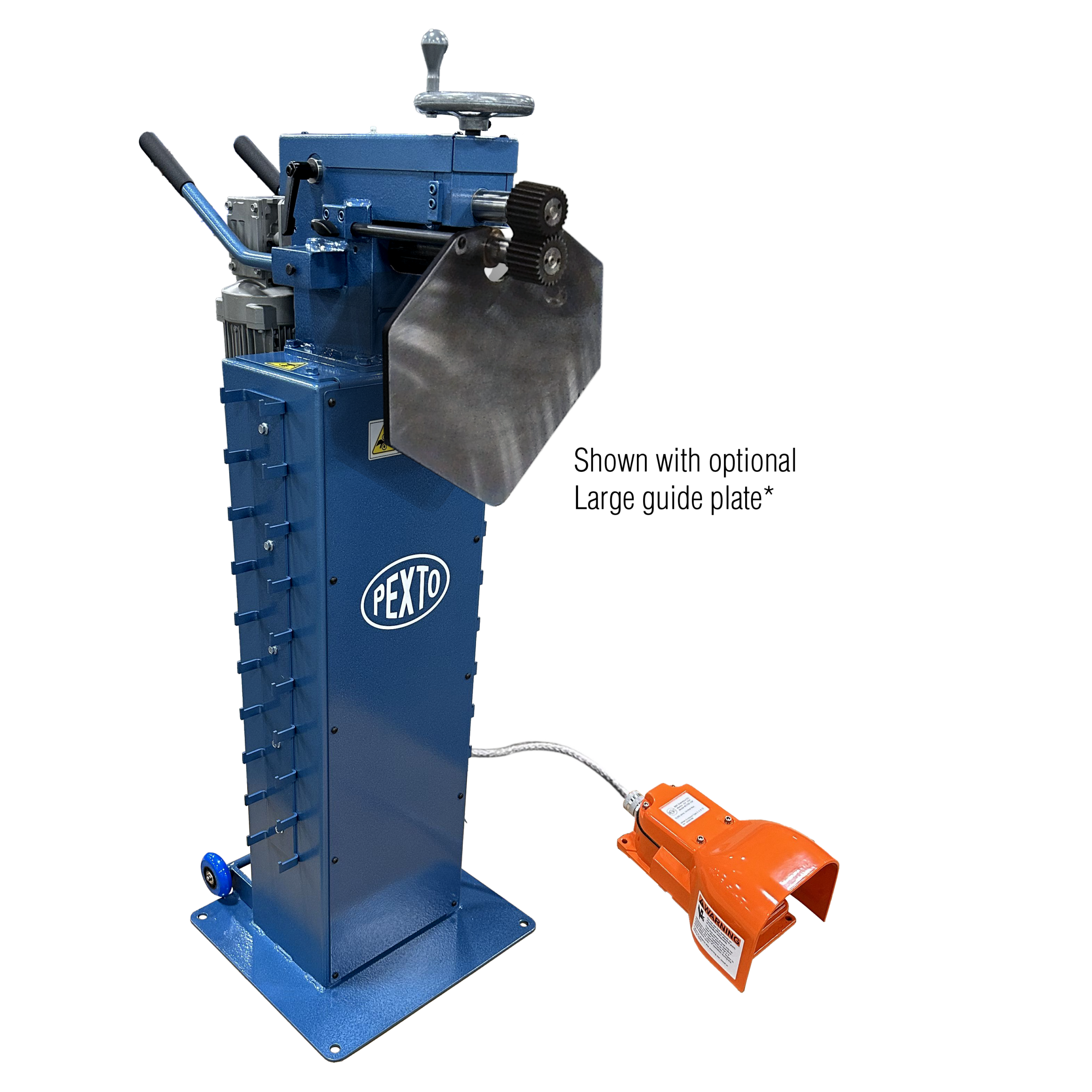

The rate of forming is directly controlled by the foot switch, with rotation speed of the rolls controlled by placing more or less pressure on the pedal. For larger diameter work material, the PR 720 may be equipped with an optional large gauge plate assembly.

Additional information
Dimensions 14 × 17 × 47 in
Capacity (Mild Steel)

20 ga / 1.0 mm

Max. Throat Depth

7” / 178 mm

Shaft Center Distance

2” / 51mm

Offset Adjustment

5/8 in / 16 mm

Speed

10-50 ft. min

Motor

120 v

Power

1/3 hp / .25 kw

Working Height

42 in

Weight

130 lbs

Related products

No. 3617 230V Powered Combination Rotary Machine

$9,500.00

A versatile machine designed for deep throat (up to 13″) beading, crimping, and other roll operations up to 18 gauge material. Back-geared, with steel horn, bronze bushed bearing and one-piece frame. Mounted on floor stand with adjustable motor mount, “V” belt drive, and 230V, 3/4 hp. geared head motor. Unit includes gauges and spacing collars for all operations except flanging. Rolls ordered separately.

View product

No. 3617 460V Powered Combination Rotary Machine

$9,750.00

A versatile machine designed for deep throat (up to 13″) beading, crimping, and other roll operations up to 18 gauge material. Back-geared, with steel horn, bronze bushed bearing and one-piece frame. Mounted on floor stand with adjustable motor mount, “V” belt drive, and 460V, 3/4 hp. geared head motor. Unit includes gauges and spacing collars for all operations except flanging. Rolls ordered separately.

View product
