Showing 1–12 of 18 results

No. 5 Jr. Hand Punch

$71.00

The No. 5 Jr. punch has a standard 1 3/4-inch throat depth has an optional mounting base. Includes one 3/16″ round punch and die set.

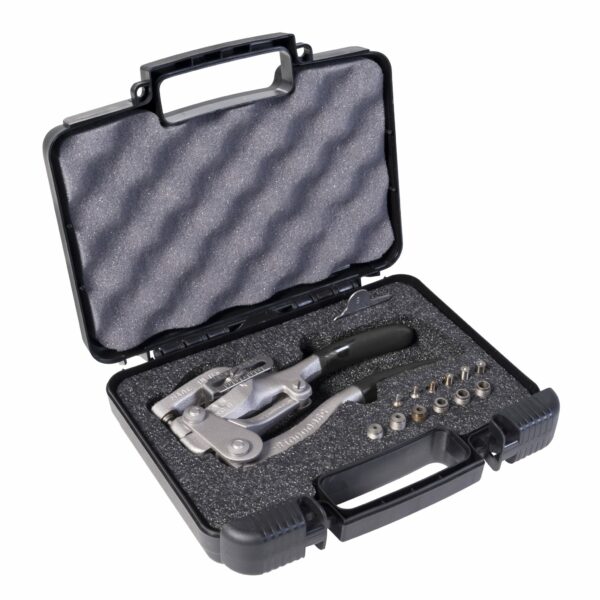

No. 5 Jr. Hand Punch Kit

$95.00

The No. 5 Jr. punch has a standard 1 3/4-inch throat depth has an optional mounting base. The No. 5 is also available as a kit with a standard assortment of round punches and dies in a durable plastic box. The standard No. 5 kit includes one 3/32″, 1/8″, 5/32″ 3/16″, 7/32″, 1/4″ and 9/32″ round punch and die.

No. XX Hand Punch

$192.00

The No. XX has a deeper throat configuration than the No. 5 and can punch up to 3 1/4″ from the edge of the piece. The No. XX can also be used to punch light channels with a 1″ minimum inside dimension an a 1 3/8″ maximum flange. Includes one 9/32″ round punch and die set.

No. XX Hand Punch in Kit

$300.00

The No. XX has a deeper throat configuration than the No. 5 and can punch up to 3 1/4″ from the edge of the piece. The No. XX can also be used to punch light channels with a 1″ minimum inside dimension an a 1 3/8″ maximum flange. The No. XX is also available as a kit with a standard assortment of round punches and dies in a durable plastic box. Includes one 5/32″, 7/32″ 9/32″, 11/32″, 15/32″, nd 17/32″ round punch and die.

No. 7A Portable Punch

$354.00

The No. 7A punch has a capacity of a 1/4″ hole through 1/8″ plate. Unlike other similar tools, this punch will punch and strip inside a 90° arc movement of the lever and the upper handle will not disengage when moved to either extreme. Includes one 7/32″ round punch and die set.

Options include a bench mounting base, with a 3″ – 3″ 3/4″ x 5″ tapped base table.

No. 8 Portable Punch-Roller Bearing

$475.00

The No. 8 punch has a capacity of a 1/4″ hole through 1/4″ plate. Unlike other similar tools, this punch will punch and strip inside a 90° arc movement of the lever and the upper handle will not disengage when moved to either extreme. Includes one 9/32″ round punch and die set.

Options include a bench mounting base, with a 3″ – 3″ 3/4″ x 5″ tapped base table; and a factory reversal of the upper handle to provide front pull-down operation when the tool’s intended use is as a bench mounted unit.

No. 10 Portable Punch-Ball Bearing

$565.00

The No. 10 punch uses rotary ball bearing operation to provide punching capacity beyond linear operation punches. The ball bearing operation extends the life of the punch by 50% while still maintaining its portable size and weight. The maximum tonnage is 7.3 tons. Includes one 9/32″ round punch and die set.

No. 20 Portable Punch-Ball Bearing

$636.00

The No. 20 tool offers 20 tons of punching power to meet heavier job requirements, and greater versatility in punching flat sheets and angles. Includes one 1/2″ round punch and die set. The No. 20 and No. 20 CTL are similar, except that the frame around the die pocket of the CTL20 is machined to allow punching close to the web of angle iron (9/16″ from web to center of  hole) Options for these tools include a ratchet attachment (for No. 20 and No. CTL20) to permit operation in close quarters and a pipe handle to provide adequate leverage with minimal effort.

No. 20 CTL Portable Punch-Ball Bearing

$656.00

The No. 20CTL punch offers 20 tons of punching power to meet heavier job requirements, and greater versatility in punching flat sheets and angles. Includes one 1/2″ round punch and die set.

No. 20 and No. CTL20 are similar, except that the frame around the die pocket of the CTL20 is machined to allow punching close to the web of angle iron (9/16″ from web to center of hole).

Options for these tools include a ratchet attachment (for No. 20 and No. CTL20) to permit operation in close quarters and a pipe handle to provide adequate leverage with minimal effort.

No. 5 Jr. Bench Mounting Base

$35.00

The bench mounting base allows the tool to be mounted to a work surface.

No. 7A Bench Mounting Base

$143.00

Optional bench mounting base, with a 3″ – 3″ 3/4″ x 5″ tapped base table and a factory reversal of the upper handle to provide front pull-down operation when the tool’s intended use is as a bench mounted unit.

No. 8 Bench Mounting Base

$143.00

Optional bench mounting base, with a 3″ – 3″ 3/4″ x 5″ tapped base table and a factory reversal of the upper handle to provide front pull-down operation when the tool’s intended use is as a bench mounted unit.
